Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor

China Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor supplier
Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor supplier Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor supplier Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor supplier Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor supplier

Large Image :  Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: QTH-416KB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
Temperature: Range -20℃ ~ +150℃ Dimension: Internal 416L, 70 X 85 X 70cm
Cooling Rate: 5℃ ~ 20℃/min (Optional) Insulation Material: Rigid Polyurethane Foam
Temp Cycling: Linearity Or Average Exterior Material: Steel Sheet Powder Baking Paint

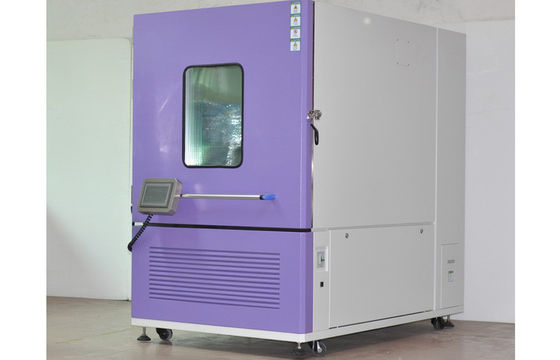

Lab Alternative High and Low Cycling Temperature Climatic Test Chamber with Microprocessor



Choosing Chamber Size:

Choosing a correct chamber size depends on the application and your available floor space. The suggested ratio is about 1:3 between product volume and the working volume of the chamber.



⅓ product to ⅔ empty space around the product ensures adequate airflow to the test sample and makes sure your test is conducted properly. Items that allow for airflow (such as a computer chassis with plenty of air vents) can take up a larger percentage of the test volume.



Externally, consider that these machines create a lot of heat, and with test cycling up and down the temperature spectrum, the chambers themselves require good air circulation. Some units will require up to three feet (or more) of clearance in all directions to work properly.



Depending on whether the test product is a live load, a larger chamber may be needed to dissipate heat produced by the test subject, adversely affecting the chamber’s pull down times or humidity system.



Sand, dust, and high altitude chambers do not need a 1:3 ratio of product volume and empty space. The air speed inside the chamber is already very high for the products and makes a 1:3 ratio unnecessary.

These chambers should be just slightly bigger than your test product.



Brief Introduction:

Rapid change temperature testing specifies a test sample temperature variation rate of 15°C/minute or less, which is the biggest difference between this method and thermal shock testing. Since rapid change temperature testing achieves highly repeatable test results, it is used for compliance testing for standards such as JEDEC (JESD 22-A104B).



With the ongoing rise in issues affecting the reliability of electronic devices and circuit boards, a better-suited evaluation testing method is needed to respond to issues such as higher device operation temperatures resulting from greater semiconductor integration, changes in device mounting methods such as BGA and CSP, and the use of lead-free solder.



Rapid change temperature testing is a type of thermal cycling tests developed to improve the failure repeatability of thermal shock tests.



Features:

1, Available internal chamber volumes: 150L, 225L, 416L, 800L and 1000L;

2, To preset different heating and cooling rate: 5℃/min, 10℃/min, 15℃/min;

3, Support rapid change temperature test, condensation test, high temperature/humidity test, temperature/humidity loop test, etc.

4, Complete real time curve display;

5, Conform but not limited standards: MIL-STD-2164, MIL-344A-4-16, GJB-1032-90, GJB/Z34-5.1.6, etc.



Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor



Technical Specifications:

Model Temp Range Internal Dimension(mm) Exterior Dimension (mm)
QTH-150KB -20℃~﹢150℃ 500 x 600 x 500 800 x 1450 x 1120
QTH-225KB 500 x 750 x 600 800 x 1620 x 1320
QTH-416KB 700 x 850 x 700 980 x 1860 x 1600
QTH-800KB 1000 x 1000 x 800 1350 x 1980 x 1700
QTH-1000KB 1000 x 1000 x 1000 1350 x 1980 x 1800
QTH-150KC -40℃~﹢150℃ 500 x 600 x 500 800 x 1450 x 1120
QTH-225KC 500 x 750 x 600 800 x 1620 x 1320
QTH-416KC 700 x 850 x 700 980 x 1860 x 1600
QTH-800KC 1000 x 1000 x 800 1350 x 1980 x 1700
QTH-1000KC 1000 x 1000 x 1000 1350 x 1980 x 1800
QTH-150KD -70℃~﹢150℃ 500 x 600 x 500 800 x 1450 x 1120
QTH-225KD 500 x 750 x 600 800 x 1620 x 1320
QTH-416KD 700 x 850 x 700 980 x 1860 x 1600
QTH-800KD 1000 x 1000 x 800 1350 x 1980 x 1700
QTH-1000KD 1000 x 1000 x 1000 1350 x 1980 x 1800
Temperature fluctuation ±0.5℃
Temperature uniformity ±2.0℃
Heating/Cooling Rate 3℃/min, 5℃/min, 10℃/min, 15℃/min, 20℃/min (optional)
Temperature slope Linearity or Average
Control system Large LCD touch screen controller, data can be displayed directly
Inner materials SUS#304 Stainless steel
Outer materials Cold rolled steel sheet powder baking paint
Insulation material Rigid polyurethane foam
Cooling mode

1, Cooling system (No consumables, suitable for long-term high frequency test)

2, Liquid nitrogen assist in cooling (Liquid nitrogen is a material used for short and low frequency test)

Safety devices Electric leakage protection , Short circuit protection, Overheat protection ,Water shortage protection , Dry burn protection switch alarm device
Power Supply AC220/380V, 50/60HZ,
Note 1, The performance values are no specimen inside the test area.
2, At 20ºC ambient temperature, relative humidity 65%RH, rated voltage



Lab Alternative Climatic Test Chamber Rapid Change Temperature Testing With Microprocessor

Contact Details
DongGuan Q1-Test Equipment Co., Ltd.

Contact Person: Mr. Andy DAI

Tel: +86-13450058229

Fax: 86-769-2278-4276

Send your inquiry directly to us (0 / 3000)
