Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled

China Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier
Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled supplier

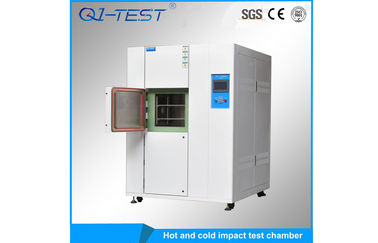

Large Image :  Climatic Temperature Thermal Shock Test Machine Energy Saving / PID Controlled

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: QTS3-75C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Volume: Internal 225L, 750 ×600× 500mm Low Temperature: Range -55℃ ~ +0℃
High Temp: Recovery RT℃~150℃/5min Cooling: Rate -10℃ ~ -70℃, Within 85min
Temp. Uniformity: Less Than ±2℃ Load Weight: 7.5Kg



Energy Saving Climatic Temperature Thermal Shock Test Chamber by PID Controlled

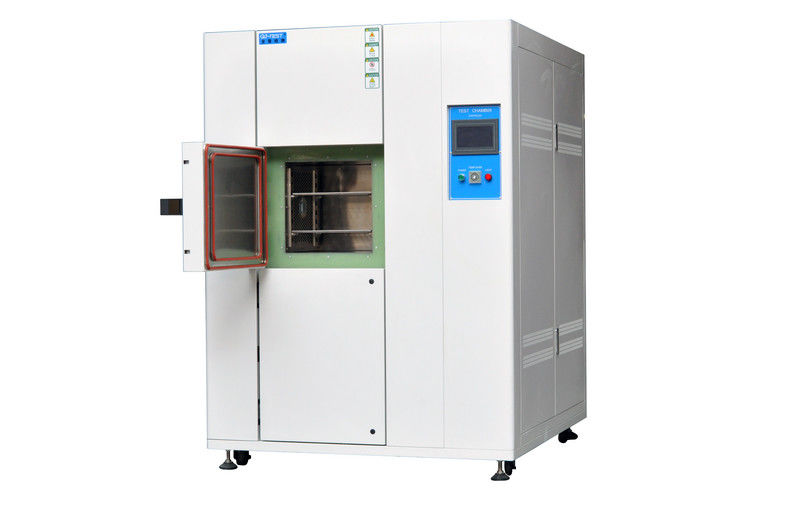

Thermal Shock Chamber is an effective tool in subjecting products to a thermal shock test. Thermal Shock Environmental Chambers have a product carrier basket that automatically transports a product under test between separately controlled temperature zones. With built-in viewing windows, users can easily observe the product as it’s transferred between different temperature zones. Thermal Shock Chambers come in a variety of performance configurations to meet specific testing needs.



QTS3 series air-to-air thermal shock chambers circulate cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set point, allowing quicker recovery of the desired condition after transfer, call Mr. Andy Dai 0086-13450058229 or email sales@q1-test.com ask for price.



Q1-Test thermal shock test chamber is used to test products in alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence.



QTS3 Features:

  1. Automatically setting of pro-cooled and pre-heated air.
  2. Testing samples don’t move, cable port is available for power on testing.
  3. Powerful interactive touch screen controller, easy operation and setting
  4. High accurate temperature recovery with PID auto tuning
  5. Auto defrost function



Testing Standards:



MIL-STD-883E Method 1011.9 Thermal Shock

MIL-STD-202G Method 107G thermal Shock

JIS C 0025 Change of temperature

IEC 61300-2-47 Tests-Thermal Shocks

JEDEC JESD47E

JESD22-A104C Temperature cycling

GB/T 2423.22-2012 Test N: Change of temperature

SJ/T10186-91Y73



Model Selection:



Model

Interior dimensions

(W ×H × D)

Interior Volume

Exterior dimensions

(W ×H × D)

Specimen loading weight
QTS3-40A/B/C

400 ×350× 400mm

15.7”×13.8”×15.7”

56L

1450× 1950 ×1600mm

57.1” ×76.8” ×63.0”

2.5Kg
QTS3-50A/B/C

500 ×400× 400mm

19.7”×15.7”×15.7”

80L

1550× 2050 ×1600mm

61.0” ×80.7” ×63.0”

5.0Kg
QTS3-60A/B/C

600 ×500× 500mm

23.6”×19.7”×19.7”

150L

1650× 2150 ×1800mm

64.9” ×84.7” ×70.9”

7.5Kg
QTS3-75A/B/C

750 ×600× 500mm

29.5”×23.6”×19.7”

225L

1850× 2250 ×1800mm

72.8” ×88.6” ×70.9”

7.5Kg



Specifications:



Structure Pre-cooling Zone, Pre-heating Zone, Testing Zone (Selectable 2-Zone or 3-Zone Test for stationary object test)
Damper Device Forced Air Damper
Interior Material SUS#304 Stainless Steel
Exterior Material stainless steel with environmentally baking paint
Testing Shelves Stainless Steel Plate

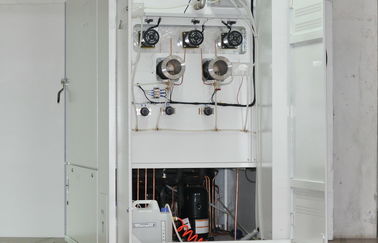

Refrigeration Cascade Refrigeration System
Cooling Method Water/Air Cooling
Ambient Temperature 5℃~30℃
Pre-heating Temperature 80℃~200℃
Pre-cooling Temperature -40℃ (-60℃/-75℃)~-10℃
High Temp. Shocking 60℃~150℃
Low Temp. Shocking

A=―35℃~0℃

B=―55℃~10℃

C=―65℃~10℃

Temp. Uniformity Less than ±2℃
Transition time <10 seconds
High Temp. Recovery time RT℃~150℃/5min
Low Temp. Recovery time RT℃~-75℃/5min
Pre-heating Time 40min (30min for 56L)
Pre-cooling Time 80min (60min for 56L)
Controller Powerful interactive LCD touch screen controller
Setting Range

Temperature: -200℃~300℃

Time: 0H1m~9999H59m

Cycle: 1~9999cycle

Resolution

Temperature: 0.01℃

Time: 1min

Control Method PID+SSR
Power supply AC380V/50Hz/3P
Accessories

Viewing Window, Cable Port, Chamber Illumination,

LCD touch screen controller, Power cable

Security System Overheat Protector, Compressor overload protector, Controller protector, Motor overload protector
Note:

1. Ambient temperature of +23℃ and a cooling water temperature of +25℃

2. During pre-heating, prevention for temperature heat-up may be worked

3. Performance shown above conforms to IEC61300-2-47

4. Temperature heat-up/pull-down time is applicable only during independent chamber operation
