2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test

China 2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test supplier
2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test supplier 2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test supplier 2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test supplier

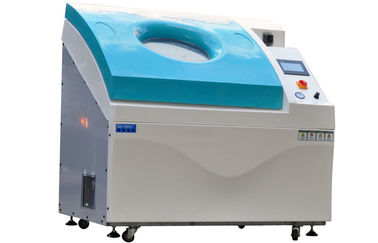

Large Image :  2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: QST-420-CCT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
Chamber Material: Glass Fiber Reinforced Plastics Nozzle: Precision Glass Nozzle
Panel: Touch Controller Internal Size: 2100 X 900 X 800mm
Spray Volume: 1~2mL/80cm²1 Hour Defogging: Air Enforcing And Drain Out



Standard Salt Spray Cyclic Corrosion Chamber for Test Drying Humidity and Temperature



Brief Introduction:



Cyclic corrosion testing is intended to be a more realistic way to perform salt spray tests than traditional, steady-state exposures. Because actual atmospheric exposures usually include both wet and dry conditions, it makes sense to pattern accelerated laboratory tests after these natural cyclic conditions. Research indicates that, with cyclic corrosion tests, the relative corrosion rates, structure and morphology are more similar to those seen outdoors.



Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.



It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.



Cyclic Corrosion Testing (CCT) has evolved in recent years, largely within the automotive industry, as a way of accelerating real-world corrosion failures, under laboratory controlled conditions. As the name implies, the test comprises different climates which are cycled automatically so the samples under test undergo the same sort of changing environment that would be encountered in the natural world.



Consequently, cyclic tests usually give better correlation to outdoors than conventional salt spray tests. They are effective for evaluating a variety of corrosion mechanisms, including general, galvanic and crevice corrosion.



Standard Delivery:



Color Touch Screen Controller 1 Water level Controller 1
Heating Slot Safe Temperature Controller 2 Warning light 1
Pressure Gage 1 Over temperature protector 2
electromagnetic Contactor 1 Supporter Rod 1
electromagnetic Contactor Solid 1 Acl reagent 500g 2
NOX LY2N relay 1 10L Solution Barrel 1
NOX MY2N relay 4 80cm² Collecting Cup 2
QJA V2A702-03 magnetic valve 4 50ml measuring cylinder 2





Technical Specification:



Name Salt Spray and Cyclic Corrosion Test Chamber
Internal Dimension 1000x700x600(WxDxH)mm
Outer Dimension 1560*1000*1580(W*D*H)mm
Power supply AC 220V/50HZ/20A
Materials
Test Chamber glass fiber reinforced plastics, thickness: 5mm
Cover glass fiber reinforced plastics, with viewing window,
auto lifting system to control cover
Solution Tank With water level, PVC board, thickness: 5mm
Chamber Frame Glass fiber, adjustable test angle
Saturation barrel Saturation barrel
Temperature Available for CNS, JIS, ASTM, according to specific application
Salt Spray Test 1.Test Chamber: 35℃±1℃
2.Saturation Barrel: 47℃±1℃
Copper-accelerated acetic acid-salt spray test 1.Test Chamber: 50℃±1℃
2.Saturation Barrel: 63℃±1℃
Test standard CNS, JIS, ASTM
Spray Mode
Tapered disperser Adjustable Spray volume, and make spray even
Nozzle Precision Glass nozzle
Spray Volume 1~2mL/80cm²1hr
Defogging Mode Air enforcing and drain out
Control System

Chamber Temperature/

Saturation barrel

Touch screen controller; temperature resolution 0.1℃,
from 0-99.90.1℃; PID auto tuning
Heating Slot Safe Temperature 0~99℃
First grade Pressure Structure Adjustment 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm²
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable;
spraying pressure adjust to 1.0Kg/cm²
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²



2100 x 900 x 800mm Cyclic Corrosion Test Chamber for Drying Humidity and Temperature test
