Product Details:
Payment & Shipping Terms:
|
| Magnification: | Brinell: 37.5X, Vickers: 75X | Resolution: | Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm |
|---|---|---|---|
| Dwell Time: | 2~60 Seconds, Adjustable | Throat: | Max Horizontal Space 165mm |
| Max Height: | Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm | Initial Force: | 10Kgf (98N) |
| High Light: | portable metal hardness tester,hardness testing equipment |
||

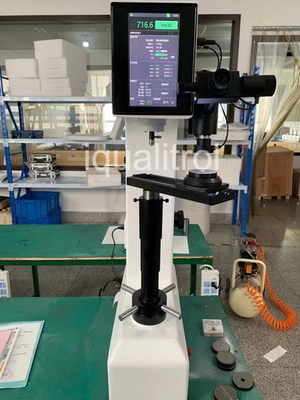

Motorized Rockwell Vickers Brinell Universal Hardness Tester with Max Force 187.5Kgf
Brief Introduction:
iUniv-187.5 Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several kinds of hardness.
Test force loading, dwell and unloading adopts automatic system, widely application and easy to operate, therefore it is the popular machine for industrial enterprises and scientific research institutes.
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Technical Specification:
| Model | iUniv-187.5 |
| Rockwell Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Brinell Test Force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N) |
| Vickers Test Force | 30kgf (294.2N), 100kgf (980.7N) |
| Indenter |
Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter |
| Hardness Reading | Rockwell: Dial, Brinell & Vickers: Check Hardness Table |
| Magnification | Brinell: 37.5X, Vickers: 75X |
| Resolution | Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm |
| Dwell Time | 2~60s |
| Max. Height of Specimen | Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph, AC110V/60Hz/1Ph |
| Execute Standard |
ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Dimension | 520×240×700mm, Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 80kg, Gross Weight: 105kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| Diamond Vickers Indenter | 1 pc | ф1.588mm, ф2.5mm, ф5mmBall Indenter | each 1 pc |
| Slipped Test Table | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| 15x Digital Measuring Eyepiece | 1 pc | 2.5x, 5x Objective | each 1 pc |
| Microscope System (include the inside light and outside light) | 1 set | Hardness Block 150~250 HBW 2.5/187.5 | 1 pc |
| Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc | Hardness Block 700~800 HV30 | 1 pc |
| Weights 0, 1, 2, 3, 4 | 5 pcs | Power Cable | 1 pc |
| Fuse 2A | 2 pcs | Horizontal Regulating Screw | 4 pcs |
| Level | 1 pc | Spanner | 1 pc |
| Screw Driver | 1 pc | Anti-dust Cover | 1 pc |
| Usage Instruction Manual | 1 copy |
The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low numbers soft materials.
