Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank

China Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank supplier
Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank supplier Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank supplier Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank supplier Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank supplier

Large Image :  Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iCut-411

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Diameter: Cutting Diameter 65mm Speed: Rotation Speed 500-3000rpm
Feed Speed: 3mm/min, 5mm/min, 8mm/min Power: 2.2KW, AC380V/50Hz/3Ph/5 Wire
Cooling: Water Cooling Controlling: Touch Screen Controller
High Light:

metallographic sample cutting machine

,

metallurgical laboratory equipment

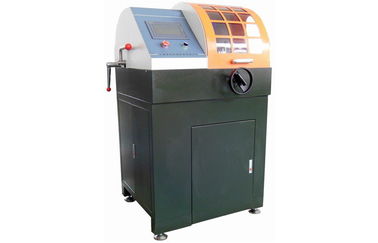

Max Section Diameter 65mm Automatic Metallographic Sample Cutting Machine With Coolant Tank



Product Information:

iCut-411 is a combination of manual and automatic control metallographic sample cutting machines, with high reliability and control ability.



Main features as follows:

(i) Manual and automatic cutting style freely exchange;

(ii) Touch screen displays full cutting specifications;

(iii) Precise positioning,

(iv) Three cutting styles: Chop cutting, absolute cutting, incremental cutting;



In order to make cutting room easy clean and ensure the spindle motor’s safety, it adopts mechanical and electrical separation.



The cover of cutting room adopts transparent organic glass material. ventilation fan was installed to make sure the working room light and clear.



The device equips with a cooling water tank designed for the storage of coolant. Cutting sample of rock, ceramic, diamond grinding wheel must be used before cutting.

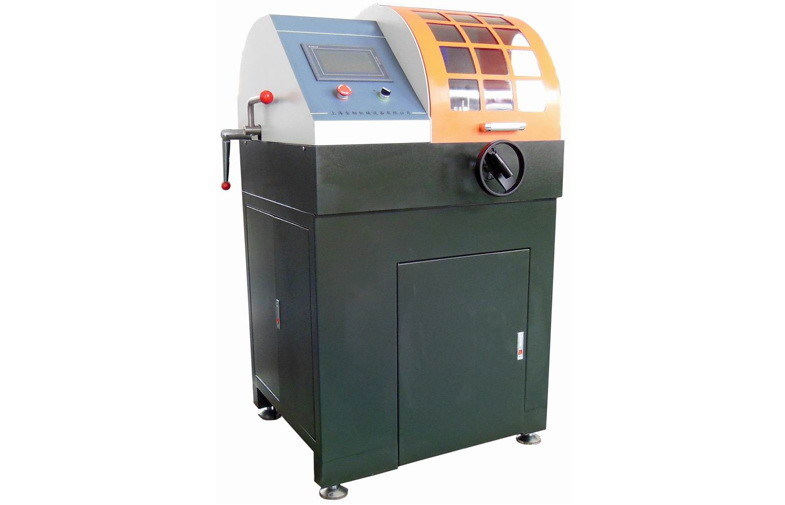

Max Section 65mm Automatic Metallographic Abrasive Cutting Equipment With Coolant Tank



Main parameters:

Feed Speed 3mm/min, 5mm/min, 8mm/min
Y Axis Travel 235mm
Z Axis Travel 35mm (Cut Style)
Cutting Diameter 65mm
Water Tank Capacity 70 Liters
Motor 2.2Kw
Rotation Speed 500-3000rpm
Power Supply AC380V/50Hz/3Ph/5 Wire
Dimension 800 x 760 x 1370mm
Weight 300Kg



Metallographical Cutting:

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
