Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm

China Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm supplier
Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm supplier Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm supplier Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm supplier Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm supplier

Large Image :  Water Cooling Sample Manual Metallographic Cutting Machine Max Cutting Diameter 85mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iCut-407

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Cutting Section: 85 X 85mm Rotation Speed: 2800rpm
Cutting Wheel: 300 X 1.5 X 32mm Motor: 3kW, 380V/50Hz/3Ph
Cooling: Water Cooling Fixture: Quick Clamping Mechanism
High Light:

metallographic sample cutting machine

,

metallurgical laboratory equipment

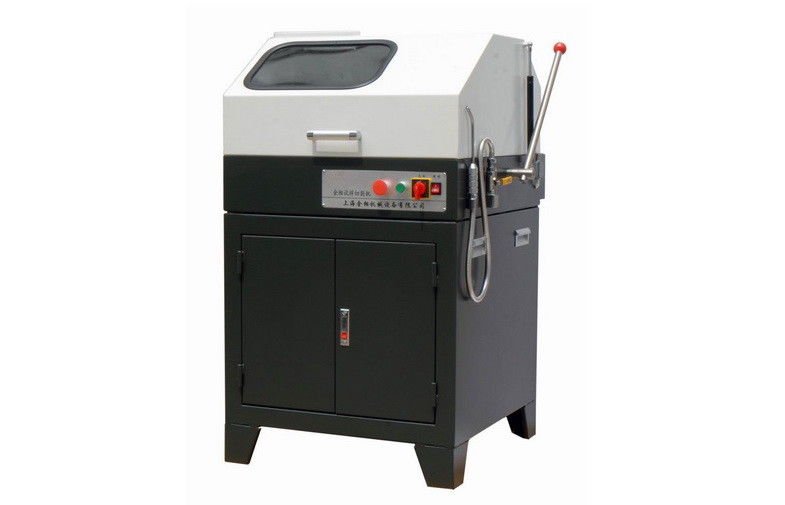

Sample Metallographic Cutting Machine Max Cutting Diameter 85mm Manual Cutting Machine



Brief Introduction:

iCut-407 Metallographic Sample Cutting Machine can be used to cut general all-facies and lithofacies sample materials, which could guarantee the cutting of optimum samples under the safe conditions.



The machine adopts all-sealing structure and quick clamping mechanism, and also attaching the cooling water tank for the use of coolant circulation, prolonging the service life, perfecting and facilitate the operation.



The inner and outer covering shell, tongs mouth, operating board, and other main spares are all made of stainless steel material, which is one of the best equipment for sample cutting.



Main Parameters:

Max Cutting Section 85 x 85mm
Rotation Speed 2800rpm
Cutting Wheel 300 x 1.5 x 32mm
Motor 3kW, 380V/50Hz/3Ph
Cutter Dimension 730 x 700 x 540mm
Stand Dimension 750 x 730 x 1200mm
Weight of Cutter 130Kg
Weight of Stand 180Kg





Metallographical Cutting:

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
