2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm

China 2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm supplier
2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm supplier 2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm supplier 2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm supplier 2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm supplier

Large Image :  2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iCut-401

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Cutting Wheel: Dimension 300 X 2 X 32mm Cutting Section: 50 X 50mm
Motor: 2.6KW Rotation Speed: 2800rpm
Cooling: Water Cooling Power Supply: 380V/50Hz/3Ph
High Light:

metallurgical sample preparation equipment

,

metallographic sample cutting machine



Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm



Brief Introduction:

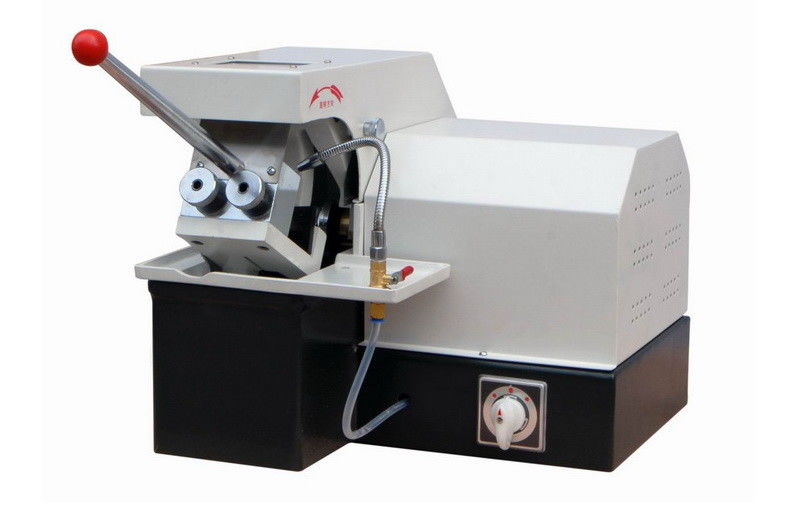

iCut-401Metallographic sample cutting machine is used for the first working procedure of metallographic sample preparation.



It adopts high speed rotating thin cutting disc to cut samples. In order not to burn the sample, it equips with cooling system.



Very easy to use and maintain and widely used in the metallographic laboratory for cutting various metal samples.



Main Parameters:

Cutting Section 50 x 50mm
Cutting Wheel Size 300 x 2 x 32mm
Rotation Speed 2800rpm
Motor 2.6KW, 380V/50Hz/3Ph
Dimension 740 x 465 x 390mm
Weight 70Kg





Metallographic Specimen Cutter:



When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.


2800rpm Metallographic Specimen / Sample Cutting Machine Max Cut Diameter 50mm
