Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling

China Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling supplier
Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling supplier Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling supplier Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling supplier Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling supplier

Large Image :  Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iCut-405

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Cutting Section: 65 X 65mm Rotation Speed: 2800rpm
Cutting Wheel: 250 X 1.5 X 32mm Motor: 1.2kW, AC380V/50Hz/3Ph
Cooling: Water Cooling Application: To Cut Irregular Samples
High Light:

metallurgical sample preparation equipment

,

metallographic sample cutting machine



Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling



Brief Introduction:

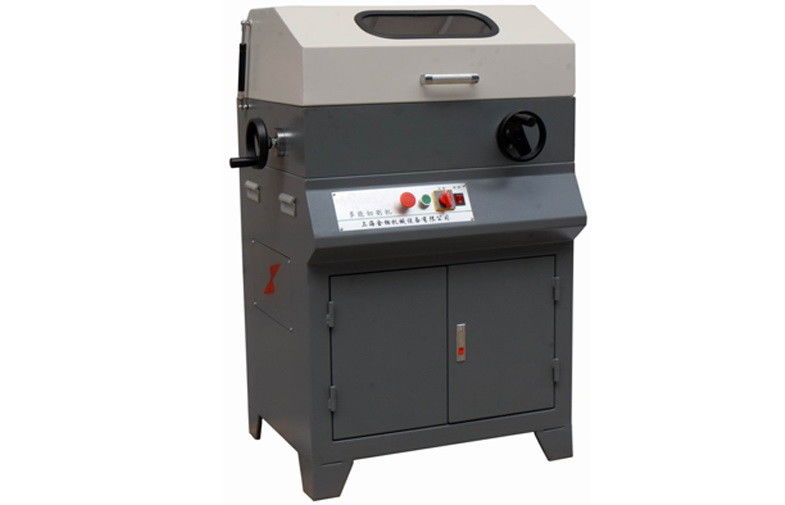

iCut-405 multifunctional cutting machine mainly used to cut irregular metallographic sample materials such as round cylinder and polygon and protruding platforms, etc.



This machine adopts double-shell totally closed structure and quick clamp device, can guarantee cutting under absolutely safe status.



Sample thickness can be changed arbitrarily, and the speed of entering is controllable.



In order to avoid sample organization burns during cutting, it comes with strong cooling system, can avoid even little burn of the sample surface while cutting and falling.



The machine has advantages in operation and maintenance; it is the extremely good apparatus for cutting irregular sample materials.



Main parameters:



Cutting Section 65 x 65mm
Rotation Speed 2800rpm
Cutting Wheel 250 x 1.5 x 32mm
Motor 1.2KW, AC380V/50Hz/3Ph
Dimension 700 x 520 x 1110mm
Net Weight 350Kg



Operation of Cutting Machine:



When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.


Multifunctional Metallographic Cutting Machine With Quick Clamp Device / Water Cooling
