NSS Cycling Corrosion Salt Spray Test Chamber / Laboratory Environment 270L

China NSS Cycling Corrosion Salt Spray Test Chamber / Laboratory Environment 270L supplier
NSS Cycling Corrosion Salt Spray Test Chamber / Laboratory Environment 270L supplier NSS Cycling Corrosion Salt Spray Test Chamber / Laboratory Environment 270L supplier

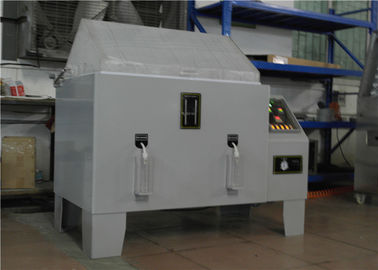

Large Image :  NSS Cycling Corrosion Salt Spray Test Chamber / Laboratory Environment 270L

Product Details:

Place of Origin: China
Brand Name: Q1
Certification: CE
Model Number: HL-90-BS

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Contact Now
Detailed Product Description
Dimension: 900 X 600 X 500mm Temperature: NSS ACSS 35℃ ± 1℃
Lab Capacity: 270L Saline Capacity: 15L
Compressed Air Pressure: 2kgf/cm2 Material: PVC

Laboratory Environment Mini 90 Salt Spray Cycling Corrosion Test Chamber



Product introduction:


Salt spray test chamber is to test the anti-erosion quality of the surface of all materials after the rust-proof of painting,coating,electroplating,anoding and greasing.it carries out the anti-corrosive treatment to test the corrosion resistance of the products.

Features:



1. The whole machine is made of PVC hard plastic sheet, corrosion resistant, easy to clean, no salt spray leakage

2. Adopt the touch-tone intelligent temperature control meter, multi-group PID automatic calculation, high control precision, can also select the LCD touch screen instrument.108L and 270L tester covers are covered with acrylic top cover

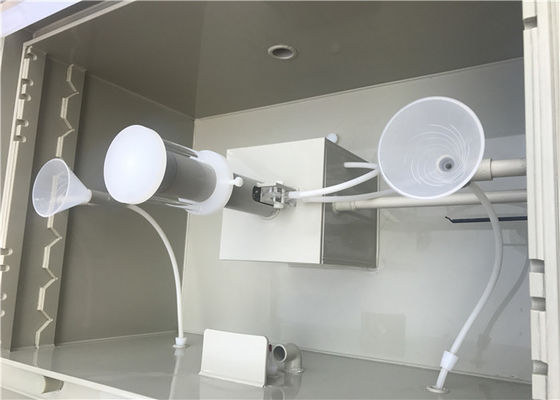

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

4. After the test, the automatic defog removal device can be used to observe the samples
5. Spray time: clearance/continuous spray can be adjustable, multi-system guarantee, safe and reliable.



Technical parameters:

Please Note Small Type of 60 and 90 do not meet standard of ASTM B117.

Button Model HL-60-SS HL-90-BS HL-120-NS HL-160-NS HL-200-NS
LCD touch screen Model HL -60-CS HL -90-CS HL -120-CS HL -160-CS HL -200-CS
Inner size (mm) W 600 900 1200 1600 2000
D 450 600 850 850 950
H 400 500 500 550 600
External size (mm) W 1130 1460 1900 2300 2700
D 630 910 1150 1150 1350
H 1070 1280 1500 1550 1600
Lab Capacity(L) 108 270 480 800 1440
Saline Capacity(L) 15 25 90 90 120
Inside Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Pressure Bucket Temperature (NSS ACSS) Test temperature : 47°C±1°C
(CASS) Test temperature : 63°C±1°C
Brine Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Test solution NSS: pure water + Nacl (PH6.5~7.2)
CASS: Pure water + NaCl + CuCl (PH3.0~3.2)
Compressed Air
Pressure
2kgf/cm2 2kgf/cm2 6kgf/cm2 6kgf/cm2 6kgf/cm2
Chamber Material polyvinyl chloride (PVC)
Spray quantum 1.0~2.0(ml/80cm2/h)
Safety device Over-temperature protection , leakage protection
Heater Corrosion-resistant titanium tube
Temperature sensor Platinum Resistance (PT-100)
Power AC 220V , 15A,1Ф, 50HZ



Optional accessories:


1. Control Panel : Key panel / LCD panel (optional)
2. Working way: steam heating type / air heating type (optional)
3. Salt concentration meter
4. Air compressor



FAQ:


Why choose us?
1. Years of research and development,production,process stress, can be customized on-demand.higher cost;
2. Equipment can be 365 days of long-term operation, better stability;
3. Sound quality assurance system,more professional after-sales service.
