| Precision: | +/-1% | Peak Value Sampling Frequency: | 2000HZ |
|---|---|---|---|
| Power: | 8.4V 1.2VX7 Ni-MH Battery Group | Charging Time: | 4～6 Hours |
| Continuous Using Time Of Battery: | About 10 Hours | Battery Life: | ≥300 Times |
| High Light: | non destructive testing instruments,fruit hardness tester |
||

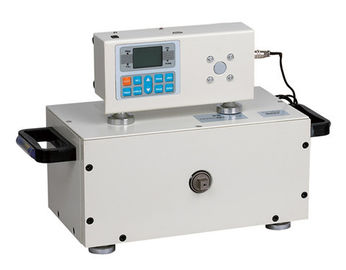

Lattice type LCD ANL-50-500 Digital Torque Meter Torque directions identify Sampling speed can be set
Function
The ANL digital torque meter is specially designed for measuring all kinds of torque. It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on. This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench, tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture, the automobile light industry and the specialized scientific research and industry.
Character
1. High accuracy, high resolution, and stability. The sampling speed can be set.
2. Fluctuate limiting value set, has the acousto-optic alarm device.
3. Lattice type LCD, the back light can be set.
4. Torque directions identify.
5. Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6. Many kinds of front values maintain.
7. Power source shows and low power prompt.
8. No-operation close automatically, can set the close time.
9. Saves and prints 100 test data, can clean out at will.
10. Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data:
such as prints, statistics and so on.
Specifications
| Typ/Index | With printer | ANL-50P | ANL-100P | ANL-200P | ANL-300P | ANL-500P |
| No printer | ANL-50 | ANL-100 | ANL-200 | ANL-300 | ANL-500 | |
| Measuring range / Division value | N·m | 50.000/0.001 | 100.00/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 |
| Kg·cm | 510.52/0.01 | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 | |
| Lb·in | 443.11/0.01 | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 | |
| Precision | +/-1% | |||||
| Peak Value Sampling Frequency | 2000HZ | |||||
| Power | 8.4V 1.2VX7 Ni-MH Battery group | |||||
| Charging Time | 4～6 Hours | |||||
| Continuous using time of battery | About 10 Hours | |||||
| Battery life | ≥300 times | |||||
| Size |
With printer:Host display part 230mm×95mm×180mm Measuring device part 480mm×190mm×180mm No printer:Host display part 230mm×70mm×125mm Measuring device part 480mm×190mm×180mm |
|||||
| Net Weight | With printer:36KG No printer:34KG | |||||
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA | |||||
