| Range: | 0~14 PH / 1 MV、-1000~1000 MV | Resolution: | 0.01 PH、1 MV |
|---|---|---|---|
| Output: | Optional DC 4~20 MA Max Load 1 K | Relay Current: | 220 VAC Max 3A Or 600 VA |
| Control Set: | 2(High,Low) | Operating Temp: | 0~60ºC |
| High Light: | non destructive testing machine,fruit hardness tester |
||

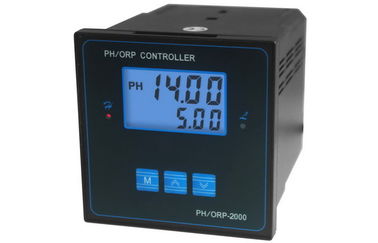

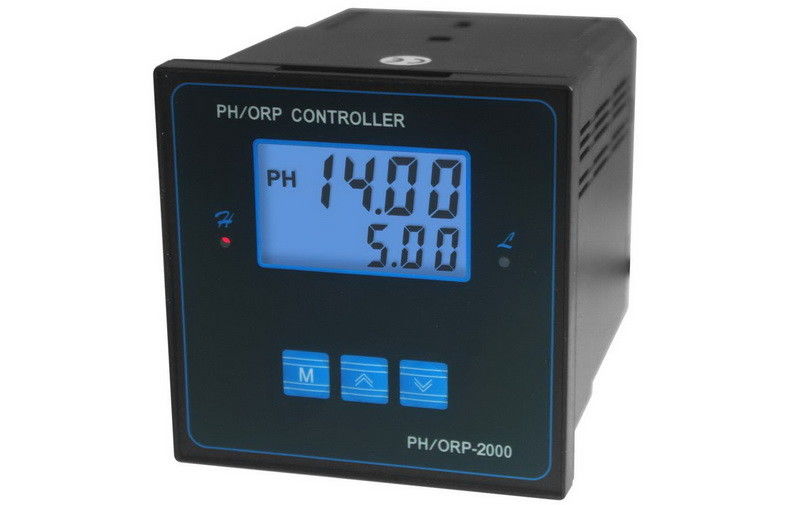

LCD Display PH / ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
Application:
Used for applications such as water treatment and monitoring,galvanic-decontamination, chemical processing,food processing,clean or wastewater control and neutralization processes.
Features:
Though the construction of the pH / ORP Controller complies with safety regulations currently in force, improper use could lead to hazards for the user or a third-party.
Therefore, the operating instructions must be read and understood by the persons involved before work is started with the pH / ORP Controller.
Specifications:
| Range | 0~14 PH / 1 mV,-1000~1000 mV |
| Resolution | 0.01 PH,1 mV |
| Display | LCD |
| Output | Optional DC 4~20 mA Max Load 1 K |
| Control Action | ON/OFF |
| Relay Current | 220 VAC Max 3A or 600 VA |
| Control Set | 2(High,Low) |
| Operating Temp | 0~60ºC |
| Power Supply | 220VAC 50 Hz |
| 110VAC 60 Hz | |
| Dimensions | 92 mm(H)-92 mm(W)-110 mm(D) |
| Weight | 0.2kg |
| Standard Accessories | Main Unit |
| Carrying Case(B03) | |
| Operation Manual |
