225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic

China 225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic supplier
225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic supplier 225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic supplier 225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic supplier 225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic supplier

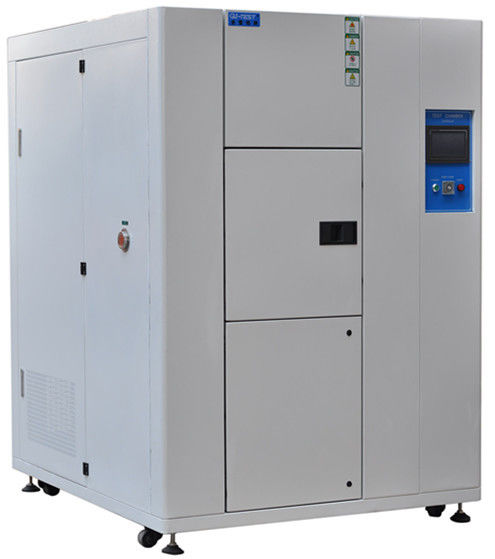

Large Image :  225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic

Product Details:

Place of Origin: Dongguan,China
Brand Name: Q1-Test
Certification: CE,ISO
Model Number: QTS3-225C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: US $20,000.00~$50,000.00
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Control Method: PID+SSR Volume: Internal 225L, 750 ×600× 500mm
Power Supply: AC380V/50Hz/3P Cooling Method: Water/Air Cooling
Interior Material: SUS#304 Stainless Steel Ambient Temperature: 5℃~30℃



225L Climatic Environmental Thermal Shock Test Chamber Equipment For Metal And Plastic





Programmable Three Zones Thermal Shock Test Chamber are applicable for testing the changes in physical of the electronic chip IC, PCB, semiconductor ceramic and polymer materials. And composite material and material structure's result which under continuous environment with high temperature or low temperature shock in short time; it means this product can test the material's chemical change or physics change by expansion and contraction within short time. It's application to metal, plastic, rubber, food, electronic etc.alternation environment.



High memory capacity,can set 120 programs and each program can be repeated for max 9999 times.Each step can be proceeded for max 999 hours and 59 minutes.It's able to communicated with computer via RS485 port,so as to control,edit and record 2 groups of dynamic nodes,easy to operate.



QTS3 series air-to-air thermal shock chambers circulate cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set point, allowing quicker recovery of the desired condition after transfer.



QTS3 Features:

  1. Automatically setting of pro-cooled and pre-heated air.

  2. Testing samples don’t move, cable port is available for power on testing.

  3. Powerful interactive touch screen controller, easy operation and setting

  4. High accurate temperature recovery with PID auto tuning

  5. Auto defrost function

  6. System alarms are stored in memory for historical review

  7. Operation data can be downloaded as needed, or continually, to USB

  8. Energy saving, low consumption, low noise design.

  9. Lowest error, high speed, test samples exposure smooth.

Testing Standards:



MIL-STD-883E Method 1011.9 Thermal Shock

MIL-STD-202G Method 107G thermal Shock

JIS C 0025 Change of temperature

IEC 61300-2-47 Tests-Thermal Shocks

JESD22-A104C Temperature cycling

GB/T 2423.22-2012 Test N: Change of temperature

GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method

GB 11158 High and low temperature test term



Model Selection:



Model

Interior dimensions

(W ×H × D)

Interior Volume

Exterior dimensions

(W ×H × D)

Specimen loading weight
QT3-56A/B/C

400 ×350× 400mm

15.7”×13.8”×15.7”

56L

1450× 1950 ×1600mm

57.1” ×76.8” ×63.0”

2.5Kg
QT3-80A/B/C

500 ×400× 400mm

19.7”×15.7”×15.7”

80L

1550× 2050 ×1600mm

61.0” ×80.7” ×63.0”

5.0Kg
QT3-150A/B/C

600 ×500× 500mm

23.6”×19.7”×19.7”

150L

1650× 2150 ×1800mm

64.9” ×84.7” ×70.9”

7.5Kg
QT3-225A/B/C

750 ×600× 500mm

29.5”×23.6”×19.7”

225L

1850× 2250 ×1800mm

72.8” ×88.6” ×70.9”

7.5Kg



Specifications:



Structure Pre-cooling Zone, Pre-heating Zone, Testing Zone (Selectable 2-Zone or 3-Zone Test for stationary object test)
Damper Device Forced Air Damper
Interior Material SUS#304 Stainless Steel
Exterior Material stainless steel with environmentally baking paint
Testing Shelves Stainless Steel Plate
Refrigeration Cascade Refrigeration System
Cooling Method Water/Air Cooling
Ambient Temperature 5℃~30℃
Pre-heating Temperature 80℃~200℃
Pre-cooling Temperature -40℃ (-60℃/-75℃)~-10℃
High Temp. Shocking 60℃~150℃
Low Temp. Shocking

A=―35℃~0℃

B=―55℃~10℃

C=―65℃~10℃

Temp. Uniformity Less than ±2℃
Transition time <10 seconds
High Temp. Recovery time RT℃~150℃/5min
Low Temp. Recovery time RT℃~-75℃/5min
Pre-heating Time 40min (30min for 56L)
Pre-cooling Time 80min (60min for 56L)
Controller Powerful interactive LCD touch screen controller
Setting Range

Temperature: -200℃~300℃

Time: 0H1m~9999H59m

Cycle: 1~9999cycle

Resolution

Temperature: 0.01℃

Time: 1min

Control Method PID+SSR
Power supply AC380V/50Hz/3P
Accessories

Viewing Window, Cable Port, Chamber Illumination,

LCD touch screen controller, Power cable

Security System Overheat Protector, Compressor overload protector, Controller protector, Motor overload protector
Notes

1. Ambient temperature of +23℃ and a cooling water temperature of +25℃

2. During pre-heating, prevention for temperature heat-up may be worked

3. Performance shown above conforms to IEC61300-2-47

4. Temperature heat-up/pull-down time is applicable only during independent chamber operation



If you are interested in our products, please feel free to contact us. Thank you!
