Product Details:
Payment & Shipping Terms:
|
| Load: | 250g, 500g, 1000g | Test Speed: | 60,70 Rpm Or Specified |
|---|---|---|---|
| Standard Delivery: | Grinding Wheel 1 Set, 1 Set Of Sand Paper | Grinding Wheel: | H18 |
| High Light: | tensile testing machine,universal testing machine |
||

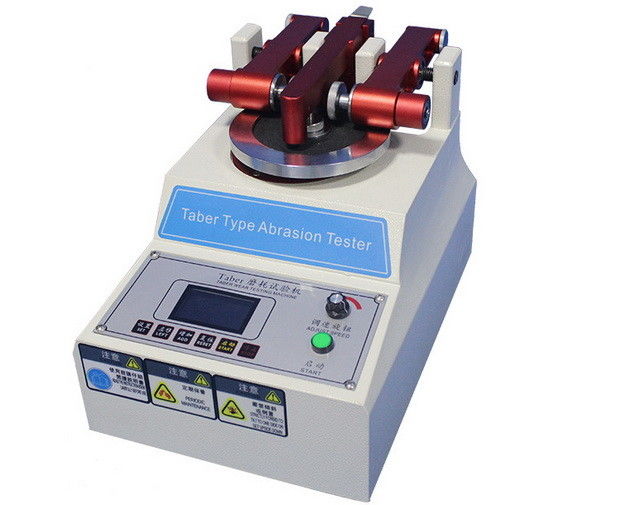

Digital Display Taber Abrasion Tester for Leather Cloth and Rubber Testing
Model: iRY-7
Taber abrasion tester is suitable for leather, cloth, paint, paper, floor tiles, plywood, glass, natural rubber until wear test.
The method is to use a standard cutter to cut the test piece, with the specified model of the grinding wheel, and a certain load The weight is abraded.
After the specified number of revolutions, the test piece is taken out and the state of the test piece after grinding or the weight of the test piece before the test and the weight difference after the test are observed.
Abrasion Index Calculation Formula: Abrasion Loss Weight / Test Rotation Number × 1000 Alternative Grinding Wheel Number: H18
Technical Specifications:
| Test piece | outside diameter 108mm, inside diameter 8mm |
| Load | 250g, 500g, 1000g |
| Counter | Electronic display 6 digits, automatic shutdown |
| Test plate speed | 60,70 rpm or specified |
| Dimension | 30x43x30cm |
| Weight | 30Kg |
| Standard Delivery | Grinding wheel 1 set, 1 set of sand paper |
| Grinding wheel | H18 |
| Power supply | AC220V/50Hz |
