Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers

China Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers supplier
Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers supplier Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers supplier

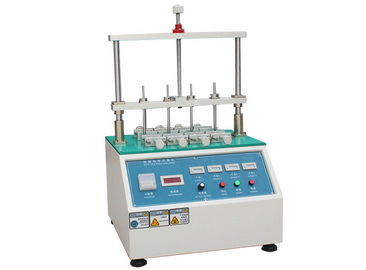

Large Image :  Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iRY-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 5 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Contact Now
Detailed Product Description
Test Station: 4 (Simultaneously) Test Distance: Range 0-60mm
Test Rod Fixture: Adjustable Range 0-180mm Load Weight: 80, 50, 100, 200, 300, 500g (optional)
Test Speed: 5-60 Times/minute Fixture Conventional Clamping: Range 60*70mm
High Light:

universal material tester

,

universal testing machine





Pneumatic Switch Key Button Life Testing Machine for Mobile Phones and Computers


Model: iRY-8



Button life testing machine is suitable for mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control buttons, vehicle alarms, fax machine buttons, MP5, MP4, MP3, button switches, touch switches, membrane buttons, rubber Keys, silicone keys and other keys are used for life testing.



This machine is to put the product in the test position of the corresponding station, and the key test bar simulates the life test of the product under a certain test load, speed, stroke, and number of times.



Working Principle

The button life tester uses the motor drive eccentric to move the connecting rod up and down so as to hit the key; the result is set the counter test times, so as to judge the quality of the key.

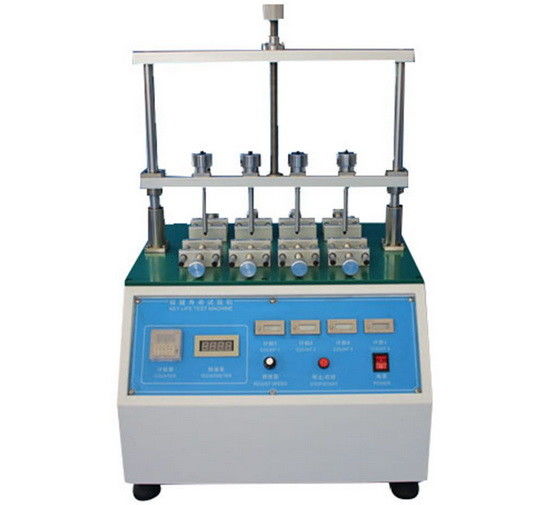

Pneumatic Switch Key Button Life Testing Machine For Mobile Phones And Computers

Technical Specifications:

Test station 4 (simultaneously)
Experiment counter 0-99999999 (can be preset, LCD display)
Test distance range 0-60mm
Test rod fixture adjustable range 0-180mm
Machine weight 60KG
Load weight 80, 50, 100, 200, 300, 500G (optional)
Test speed 5-60 times/minute (knob adjustable, LCD display)
Experimental fixture conventional clamping range 60*70mm (manually adjustable)
Dimensions 1000*400*550mm(L*W*H)
Working power AC220V 50HZ
Test conduction number counter 0-999999 times (four stations turn on automatic technology, disconnect automatically stop counting)
