Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply

China Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply supplier
Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply supplier Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply supplier Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply supplier Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply supplier

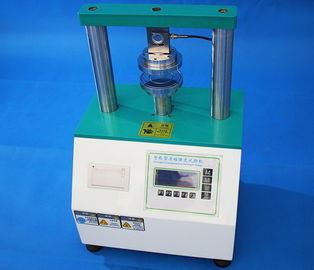

Large Image :  Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iRY-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 5 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Contact Now
Detailed Product Description
Test Range: ≤2000N Accuracy: ±1%
Test Speed: 12.5±2.5mm/min Parallelism: <0.05mm
Plate Dimension: 100×100mm Plate Gap: 80mm
High Light:

universal material tester

,

tensile testing machine



Paperboard Side Pressure Strength Testing Machine



Model: iRY-10



Intelligent paperboard side pressure strength tester, also known as computer test control compression tester, paperboard compression tester, electronic compression tester, side pressure meter, ring pressure meter.



It is the basic instrument for the paperboard/paper compressive strength performance test (Paper packaging testing equipment), equipped with a variety of fixture accessories can test the raw paper of the ring pressure strength, cardboard flat pressure strength, side pressure, bonding strength and other tests, so that paper production enterprises to control production costs and improve product quality.



Its performance parameters and technical indicators are in compliance with relevant national standards.



Executive Standard:
1, GB/T 2679.8-1995 "determination of paper and cardboard ring pressure strength."
2, GB/T 6546-1998 "Corrugated cardboard edge pressure strength measurement."
3, GB/T 6548-1998 "Corrugated board adhesive strength determination."
4. GB/T 2679.6-1996 "Determination of flat compressive strength of corrugated base paper".
5. GB/T 22874 "Determination of flat compressive strength of single and single corrugated cardboard"



The following tests can be performed with the corresponding accessories:

1.Equipped with a ring pressure test center disk and a special sampler for ring pressure to perform a cardboard ring pressure strength test (RCT).



2. Equipped with a side pressure (adhesive) sample sampler and an auxiliary guide block to carry out a corrugated board side pressure strength test (ECT).


3, equipped with peel strength test frame, corrugated board adhesion (peel) strength test (PAT).


4. Equipped with a flat pressure sampler for corrugated flat sheet strength test (FCT).


5. After the original paper laboratory, the compressive strength (CCT) and the flat compressive strength (CMT) were obtained.

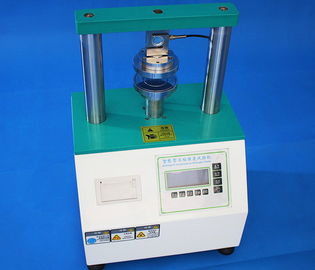

Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply



Product features:
1, the system automatically calculates the ring pressure strength, side pressure strength, without the user's hands to calculate, reducing the workload and errors.


2, comes with a package stacking test function, you can directly set the power, time, automatic shutdown after the completion of the test.


3. After the test is completed, there is an automatic return function, which automatically determines the crushing force and automatically saves the test data.


4, three kinds of speed can be set, all Chinese LCD display interface, a variety of units to choose from.



Technical Specifications:

Model iRY-10
Test Range ≤2000N
Accuracy ±1%
Units N,kN,kgf,gf,lbf
Test Speed 12.5±2.5mm/min (Support Customized)
Parallelism degree <0.05mm
Plate Dimension 100×100mm (Support Customized)
Plate Gap 80mm (Support Customized)
Overall Dimension 350×400×550mm
Power Supply AC220V±10% 2A 50HZ

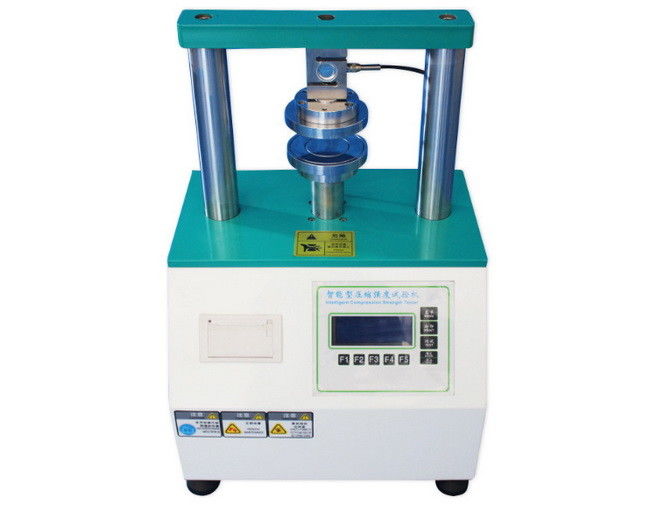

Paperboard Side Pressure Strength Universal Material Testing Machine 220v Power Supply
