LCD Screen Digital Brinell Hardness Testing Machine With 10X Microscope

China LCD Screen Digital Brinell Hardness Testing Machine With 10X Microscope supplier

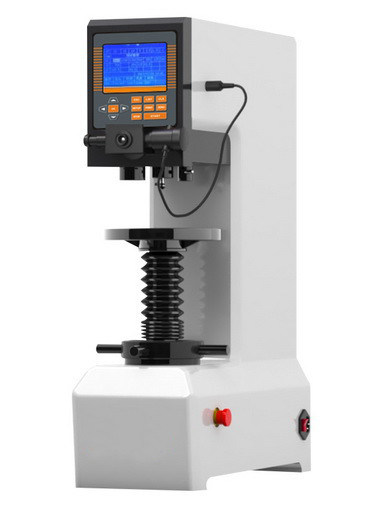

Large Image :  LCD Screen Digital Brinell Hardness Testing Machine With 10X Microscope

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE, ASTM E-10
Model Number: HBS-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Reading: LCD With Hardness Conversion Microscope: 10X Digital Microscope, Total 20X
Vertical Space: 280mm Ball Indenter: Diameter 2.5mm, 5mm, 10mm
Data Output: Built-in Printer Horizontal: Space 150mm
High Light:

digital hardness tester

,

portable metal hardness tester





LCD Screen Built-in Printer Digital Brinell Hardness Tester with 10X Eyepiece



Model: HBS-3000



Brief Introduction:

Digital display Brinell hardness tester HBS-3000 uses computer software programming, photoelectric sensing technologies. Through button input, select the test method and hardness scales displays on LCD large screen.



Also displays the test method, test force, measuring indentation length, hardness value, dwell time, and hardness conversion, with built-in printer,RS-232 interface.



Main Functions and Features:

1, HBS-3000 is a high precision, high repeatability and stability hardness testing machine, easy operation, convenient and practical, cost-effective.



2, Integrated digital microscope and precise data calculation system to display the hardness value directly with just one click;



3, Equips with precision sensors and computer control system, the test results are accurate and stable;



4, Automatically enter the indentation diameter, directly display the hardness value, support hardness conversion;



5, Equips with high-performance stepper motor automatically loading, dwell and unloading, low noise during the testing process;



6, Self-designed optical system, image clarity, brightness adjustable, long-term operation should not be fatigue;



7, with data transmission RS232 interface, the measurement data can be transmitted to the computer for editing and saving;



8, The shell is cast once, the structure is stable without deformation, and it can work in a relatively harsh environment; The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;



Main Application Range:

1,suitable for hardness tester with large grain metal materials, can reflect the comprehensive performance of the material;



2, cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.



3, can be used for hard plastic, bakelite and other non-metallic material hardness tester



Technical Specifications:

Model HBS-3000
Brinell ruler HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000
Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Maximum height of test piece 280mm
Indenter to wall distance 150mm
Indenter - Upper wall distance 55mm (support customized)
Minimum measurement unit 0.125um
Dwell time 0~60s
Hardness test range 8~650HBW
Total magnification 20X
Executive standard EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Hardness reading Automatic calculation
power supply AC220+5%,50~60Hz
Dimensions(mm) 565*230*7980mm
Weight of host About 200kg


Accessories:

Name Quantity Name Quantity
Digital Eyepiece 1 Diameter 2.5,5,10mm Carbide Ball Indenter 1
Standard hardness block 3 Large, V-type test bench 1
Power cable 1 Product certification, product instruction manual 1
Fuse 2 printer paper 1
RS232 Cable 1 Dust cover 1

LCD Screen Digital Brinell Hardness Testing Machine With 10X Microscope

non-fumigation transport package:
LCD Screen Digital Brinell Hardness Testing Machine With 10X Microscope
