LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics

China LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics supplier
LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics supplier LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics supplier

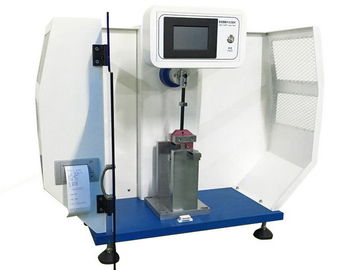

Large Image :  LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: ISO 179, CE
Model Number: JZL-5D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
JZL-5D: Energy 1J, 2J, 4J, 5J Impact Speed: 2.9m/s Or 3.8M/S
Pendulum: Lifting Angle 150° Jaw Space: 40mm, 60mm, 70mm, 95mm
JZL-15D: Energy 7.5J, 15J JZL-50D: Energy 25J, 50J





Digital LCD Charpy Impact Testing Machine with Built-in Printer for Plastic-hard Material



Product introduction:
The digital display Charpy impact tester is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass steel, ceramics, cast stone, and electrical insulating materials.

It is an ideal test equipment for the chemical industry, research institutes, universities, and quality inspection departments.



The implementation of standards:

ISO 179-1: 2010 Plastics — Determination of Charpy impact properties, specifies a method for determining the Charpy impact strength of plastics under defined conditions

GB/T1043 Plastics Determination of charpy impact strength of rigid materials

JB/T8762 Charpy impact testing machines for plastics

GB/T 18743-2002 Thermoplastics pipes for the transport of fluids - Determination of impact by the Charpy method

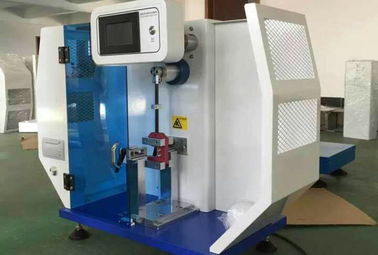

LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics


Highlighted Features:
High-precision intelligent controller with LCD display, intuitive and accurate reading data, use of carbon fiber pendulum (patent pending), improving the rigidity of the material in the impact direction, and focusing the impact mass on the pendulum.

The hammer's center of mass is truly shock-free and has a long service life. high-resolution digital encoder, angle test accuracy is higher and more stable.

Impact hammers and ball bearings that meet the aerodynamic principle, greatly reduce the friction loss caused by the machine and automatically calculate the final result.

The test data can be saved 12 sets, test results can choose J/m, KJ/m2, kg-cm/cm, ft-ib/in and other units built-in micro printer to print test data.


Technical specifications:

Display mode Color touch screen (Chinese and English)
Angle Sensor Accuracy 0.01
Energy display accuracy 0.01J
Impact speed 2.9m/s or 3.8M/S
Distance from pendulum center to sample center: 230mm, 395mm
Pendulum lifting angle 150°
Jaw support spacing 40mm, 60mm, 70mm, 95mm
Support blade corner radius R=1mm
Impact blade angle 30°
Impact blade fillet radius R=2mm±0.5mm
Model JZL-5D JZL-15D JZL-50D
Pendulum Energy 1J , 2J, 4J, 5J 7.5J, 15J 25J, 50J



LCD Controller Charpy Impact Universal Material Testing Machine Built In Printer For Plastics
