ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials

China ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials supplier
ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials supplier ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials supplier

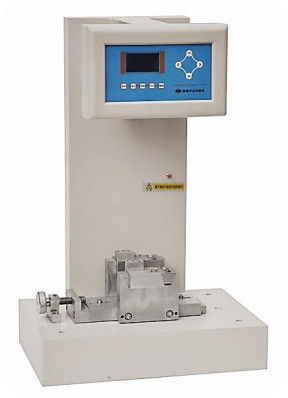

Large Image :  ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: ASTM D256
Model Number: XJC-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Impact Speed: Charpy: 2.9/3.8; Izod: 3.5 Charpy Impact: Energy (0.5), 1, 2, 4, 5, 7.5, 15, 25, (50)
Izod Impact: Energy (0.6), 1, 2.75, 5.5, 11, 22 Angle: 160°
Charpy Tip: Radius R=2mm ±0.5mm Jaw Radius: R=1mm ±0.1mm



ASTM D256 Izod and Charpy Pendulum Impact Tester with LCD for non–metallic materials



Model: XJC-5, XJC-5D



Overview:

XJC Pendulum Impact Tester is used to test the anti-impact intensity both in izod and charpy of engineering plastics, glass-steel, ceramics, casting stone, plastic wiring, insulating material, plastic pipe material and other non –metallic materials.

It has electronic controlling system which is much easier operated and the test result is calculated automatically.



Izod impact testing is an ASTM standard method of determining the impact resistance of materials. A pivoting arm is raised to a specific height (constant potential energy) and then released. The arm swings down hitting a notchedsample, breaking the specimen. The energy absorbed by the sample is calculated from the height the arm swings to after hitting the sample. A notched sample is generally used to determine impact energy and notch sensitivity.



The Charpy impact test, also known as the Charpy V-notch test, is a standardized high strain-rate test which determines the amount of energy absorbed by a material during fracture. This absorbed energy is a measure of a given material's notch toughness and acts as a tool to study temperature-dependent ductile-brittle transition. It is widely applied in industry, since it is easy to prepare and conduct and results can be obtained quickly and cheaply. A disadvantage is that some results are only comparative.



Standards:

1, DIN 53453 Testing of Plastics Impact Flexural Test, The purpose of the impact flexural test is to ascertain the behaviour of specified test specimens under defined conditions of impact flexural loading, and to assess the toughness or brittleness within the limits set by the test conditions.

2, ASTM D256 - 10 Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics

3, ISO 179-1:2010 Plastics -- Determination of Charpy impact properties -- Part 1: Non-instrumented impact test

4, ISO 180:2000 Plastics -- Determination of Izod impact strength



Specification:

Velocity at Impact (m/s) Charpy: 2.9 3.8;
Izod: 3.5
Impact Energy (J) Charpy (0.5), 1, 2, 4, 5, 7.5, 15, 25, (50)
Izod (0.6), 1, 2.75, 5.5, 11, 22
Angle 160°
Charpy Tip Radius R=2mm ±0.5mm
Izod Tester Blade Radius R = 0.8 + - 0.2 mm
Jaw Radius R=1mm ±0.1mm
Blade Angle 30°±1°
Charpy Support Spacing 40mm, 60mm, 70mm, 95mm
Izod Support Spacing 22mm±0.5mm
Display Mechanical or LCD
Effective Length of Pendulum 380 mm, 322 mm
Power Supply AC220V 50Hz

ASTM D256 Plastics Izod And Charpy Pendulum Impact Tester With LCD For Non – Metallic Materials



Test Piece Shape Length C Length b Length d Charpy Support Spacing Izod Support Spacing
1 50±1 6±0.2 4±0.2 40 22
2 80±2 10±0.5 4±0.2 60
3 120±2 15±0.5 10±0.5 70
4 125±2 13±0.5 13±0.5 95


Models:

Model Energy (J) Velocity (m/s) Display Size (mm) Weight (kg)
XJC-5

Charpy: 1, 2, 4, 5

Izod: 1, 2.75

2.9

3.5

Mechanical 500×350×800 120
XJC-5D

Charpy: 1, 2, 4, 5

Izod: 1, 2.75

2.9

3.5

LCD 500×350×800 120


0.5J, 0.6J, 50J must be customized.
