Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control

China Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control supplier
Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control supplier Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control supplier Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control supplier Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control supplier

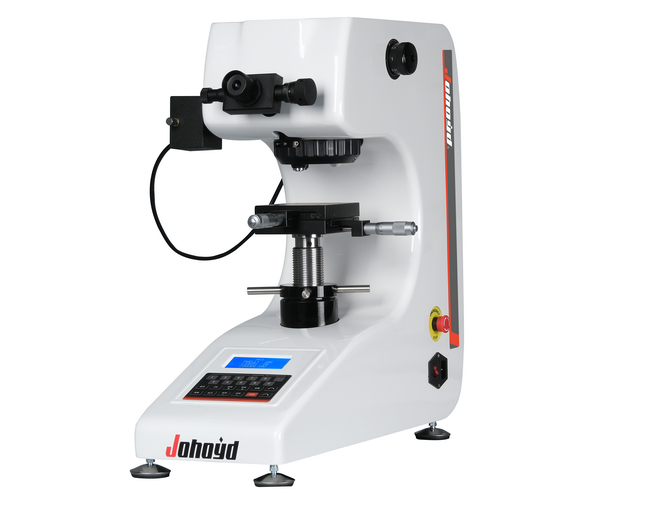

Large Image :  Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: ASTM E384, CE
Model Number: HV-1000Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Contact Now
Detailed Product Description
Test Force: From 0.01Kgf To 1Kgf Dwell Time: From 5 Seconds To 60 Seconds
Objectives: 10X, 40X X-Y Anvil: 100 * 100mm
Max Height: 110mm Horizontal: Space 85mm



Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control



Model: HV-1000Z



The automatic turret type micro hardness tester is a high-tech product of opto-mechatronics. The hardness tester is novel in design, has good reliability, operability and repeatability, and is an ideal product for testing micro hardness.



The machine uses C language programming, high-magnification optical measurement system and optical dual-channel structure, photoelectric, photo coupler and other new technologies. Through the key operation, the length of the measurement indentation can be entered on the key, the hardness value can be displayed on the LCD screen, the conversion scale, the test force, the test force holding time and the number of measurements.





Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation will not make you fatigued.



2. The industrial display screen can directly display the hardness value, the conversion hardness, the test method, the test force, the retention time, the number of measurements, and the test process is intuitive and clear;



3. Cast aluminum shell molding, stable structure won’t be easily deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;



4. Our company has its own R & D design, production and processing capabilities, our machine life to provide parts replacement and maintenance upgrades.



5. HV-1000Z model can be achieved: observation - test - measurement of the position switch by the automatic turret





Application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures

2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings, Glass, wafers, ceramic materials



Technical Parameters:

Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display Holding time (seconds), hardness value
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (load/hold/uninstall)
Test force retention time (s) 5 to 60
Test force selection External selector knob, test force is automatically displayed on the LCD screen
Objective magnification 10X, 40X
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system 1. 10x eyepiece;
2. The total magnification (μm): 100X (observation), 400X (measurement);
3. Measuring range (μm): 200;
4. Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100X100
Travel range (mm): 25X25
Minimum reading (mm): 0.01
Maximum height of specimen (mm) 110
Maximum width of specimen (mm) 85 (distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (540×200×530)mm



Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control



Standard configuration:

Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1)

2. Test platform, weight, microscope accessory box;
3.Weights x6 4.Weight bar x1
5.Cross table x1 6.Sheet clamping table x1
7.Flat mouth clamping table x1 8.Filament holding table x1
9.Level meter x1 10.Screwdriver x2
11.Horizontal adjustment screws x4 12.External power cord x1
13.10x Micrometer Eyepieces x1 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15.Fuses (1 A) x2 16.Product certification x1
17.Product Instruction Manual x1 18.Dust cover x1

Note:

1. Optional side-sway lifting system makes the lifting system more stable and accurate

2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.

3. Cooperation institutions: Nanjing University of Science and Technology, Hefei University of Technology, Harbin Institute of Technology, Wuxi Jiangnan University, Guilin University of Electronic Technology, etc.



Mechanical 10X Eyepiece Motorized Turret Micro Vickers Hardness Tester Auto Loading Control
