6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles

China 6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles supplier
6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles supplier 6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles supplier 6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles supplier 6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles supplier

Large Image :  6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: i35-6015S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Camera: 0.45 Mega Pixel Bending: 360° All‐way Articulation
Optional: Temperature Measure, WIFI Depth Of Field: 20mm~150mm/ 10-100mm

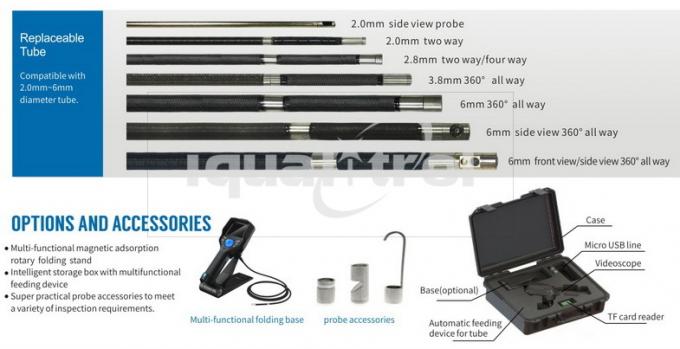

View: Camera Side View Replaceable: Tubes Diameter From 2mm To 6mm


6mm Camera Side View Industrial Borescope with 3.5" HD Monitor for Inspection Injection Nozzles

Model: i35-6015S

Brief Introduction:
A borescope is an optical tool used to view areas that would otherwise not be visible. A borescope is inserted into the item being evaluated without destroying the item of interest.

A Borescope can consist of
Rigid or flexible working length
Light Source to illuminate the target under inspection.
Optical system that may consist of a relay lens system, rod lens system, fiber optic image guide a CCD or CMOS camera.
Eyepiece or Monitor to view the image

A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.
   6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles


Application:

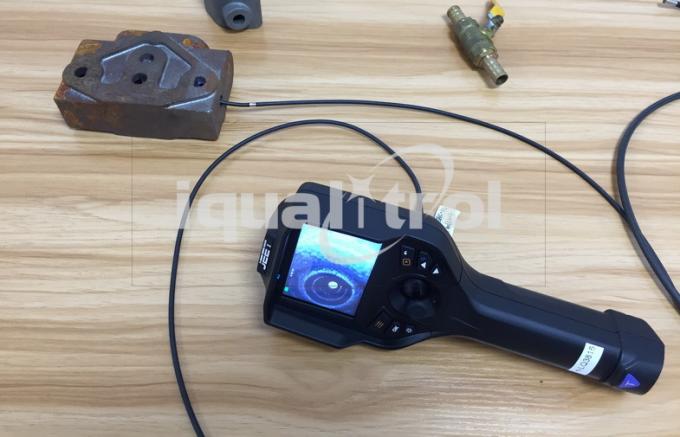

Automotive, Quality control examination of engines, hydraulic components, injection nozzles, as well as final inspection of assembles;

Power Generation, Maintenance of heat exchanger pipes, condensers, piping and turbines in nuclear and thermal power Generation plants, and gearboxes of wind power generation facilities.

iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.


Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
   6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles
Operation Environment:

Host System Working Temperature -20°C~50°C, when 0°C below, the display needs preheating.
Camera Working Temperature -20°C~80°C, when 0°C below, please reduce oriented operation.
Store Temperature -23°C~63°C
Relative Humidity Maximum: 92%, non-condensing


Technical Specifications:

Camera Diameter(mm) Φ6mm
Camera Material Titanium alloy
Camera Pixel 0.45 Mega Pixel
Depth of Field 20mm~150mm/ 10-100mm
Angle of Field 120°
Illumination 30,000lx at a maximum
Bright/Chroma/Contrast Ratio Adjustment Manual, bright: six levels, chroma and contrast ratio: manual adjusting
Articulation 360° all-way articulation
Bending Angle ≥180°
Effective Working Length 2m
Insert Tube tungsten-braided
Protecting Device of
Durability
Buffer protection device between the host and wear-resistant tube

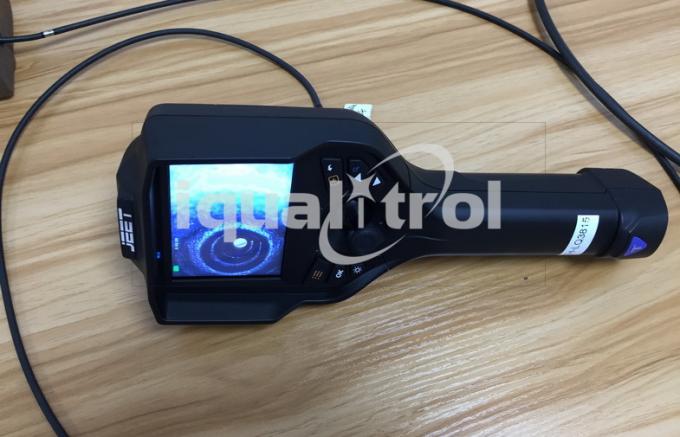

Display Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display
Display Resolution 640*480
Image Resolution 640*480/1280*720/1920*1080
Video Resolution 640*480/1280*720/1920*1080
Image/Video Format JPEG/MOV
WIFI Function WIFI(optional)
IR Function IR/IR thermal imaging(optional)
Memory Standard TF card:8G, Maximum: 32G
Language Chinese, English, Russian… 8 languages
Data I/O port Micro-USB port,HDMI port
Waterproof Camera/Object glass/Tubes:IP67
Working Time ≥8 hours
Weight ≤0.55kg(with batteries)
Power Supply Rechargeable lithium battery(or built-in battery)
Battery Capacity 3.7V 3200mAh
Power Consumption 2W
Charging Parameters DC5V, Maximum current:1A


6mm Camera Side View Borescope Non Destructive Testing Equipment With 3.5" HD Monitor For Inspection Injection Nozzles
