Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller

China Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller supplier
Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller supplier Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller supplier Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller supplier

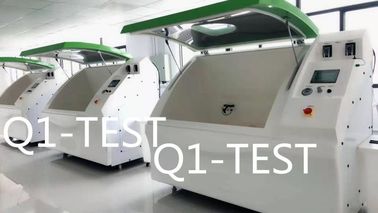

Large Image :  Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller

Product Details:

Place of Origin: Dongguan China
Brand Name: Q1-TEST
Certification: CE, ISO,CE
Model Number: QSS-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood box
Contact Now
Detailed Product Description
Power: AC220V 50HZ/60HZ Warranty: 1 Year
Color: Light Green Spray Volume: 1.0~2.0ml
Standard: CNS, JIS, ASTM Material: FRP

Light Green Color Salt Spray and Cyclic Corrosion Test Chamber with Touch Screen Controller





Features:



There is national testing standard for salt spray test, with acetic acid salt spray corrosion test, Copper-accelerated acetic acid-salt spray test, and Cyclic corrosion test. QST-500apply glass fiber reinforced plastics and touch screen auto running, it can run all the environmental test in one chamber, conform relevant international standards.

It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.



Standard Delivery:



Color Touch Screen Controller 1 Water level Controller 1
Heating Slot Safe Temperature Controller 2 Warning light 1
Pressure Gage 1 Over temperature protector 2
electromagnetic Contactor 1 Supporter Rod 1
electromagnetic Contactor Solid 1 Acl reagent 500g 2
NOX LY2N relay 1 10L Solution Barrel 1
NOX MY2N relay 4 80cm² Collecting Cup 2
QJA V2A702-03 magnetic valve 4 50ml measuring cylinder 2



Model selection:



name Salt Spray and Cyclic Corrosion Test Chamber
model QST-500 QST-1000 QST-1500
Internal Dimension(W*D*H)mm 1000*700*600 1650*900*700 2100*900*800

Outer Dimension

(W*D*H)mm

1560*1000*1570 2160*1200*1450 2711*1150*1570
Power supply AC 220V/50HZ/20A AC 220V/50HZ/20A AC 220V/50HZ/20A



Technical Specification:



Materials
Test Chamber glass fiber reinforced plastics, thickness: 5mm
Cover glass fiber reinforced plastics, with viewing window,
auto lifting system to control cover
Solution Tank With water level, PVC board, thickness: 5mm
Chamber Frame Glass fiber, adjustable test angle
Saturation barrel Saturation barrel
Temperature Available for CNS, JIS, ASTM, according to specific application
Salt Spray Test 1.Test Chamber: 35℃±1℃
2.Saturation Barrel: 47℃±1℃
Copper-accelerated acetic acid-salt spray test 1.Test Chamber: 50℃±1℃
2.Saturation Barrel: 63℃±1℃
Test standard CNS, JIS, ASTM
Spray Mode
Tapered disperser Adjustable Spray volume, and make spray even
Nozzle Precision Glass nozzle
Spray Volume 1~2mL/80cm²1hr
Defogging Mode Air enforcing and drain out
Control System

Chamber Temperature/

Saturation barrel

Touch screen controller; temperature resolution 0.1℃,
from 0-99.90.1℃; PID auto tuning
Heating Slot Safe Temperature 0~99℃
First grade Pressure Structure Adjustment 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm²
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable;
spraying pressure adjust to 1.0Kg/cm²
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²



Light Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen ControllerLight Green Color Cyclic Corrosion And Salt Spray Test Chamber With Touch Screen Controller
