AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen

China AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen supplier
AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen supplier AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen supplier AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen supplier AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen supplier

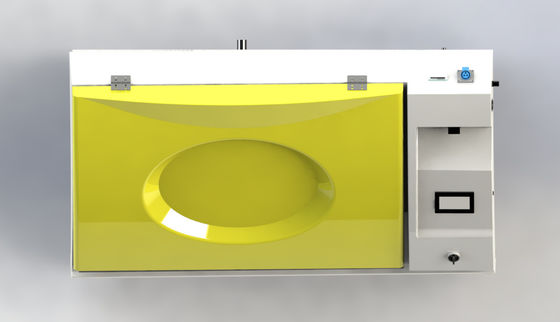

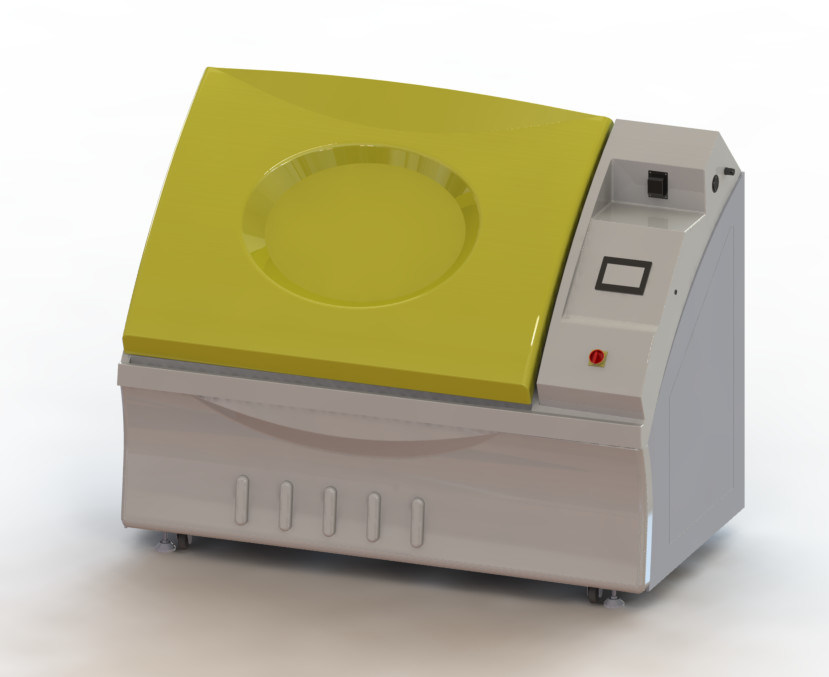

Large Image :  AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen

Product Details:

Place of Origin: GUANGDONG
Brand Name: Q1-TEST
Certification: CE,ISO,SGS
Model Number: QST-1000-CCT

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 20 Pieces per month
Contact Now
Detailed Product Description
Power: AC220V 50HZ/60HZ Ph: 6.5~7.2 3.0~3.2
Humidity Range: 95% ~ 100% RH Spray Volume: 1.0~2.0ml/80cm2/h
Temp. Air: NSS.ACSS 47°C±1°C/CASS 63℃±1℃ Warranty Period: One Year

Salt spray, drying, humidity and temperature alternating Test Chamber with Touch Screen Controller



Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.

There is national testing standard for salt spray test, with acetic acid salt spray corrosion test, Copper-accelerated acetic acid-salt spray test, and Cyclic corrosion test. CCT apply glass fiber reinforced plastics and touch screen auto running, it can run all the environmental test in one chamber, conform relevant international standards.

It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.



Parameter control operating modes:



salt spray mode:

room temperature range---+55℃

Adjusted salt fog sedimentation



Condensation humidity mode:

Room temperature range---+50℃

humidity range saturation humidity--95%~100%RH



Drying mode:

room temperature range---+70℃



Design advantages:



1.Humanization design with low front and high height,favorable for taking and placing the sample

2.One-click switch to control pneumatic doors,sealing strip dry seal

3.Integral injection molding,seamless trackless

4.Two-layer sample placement design and inverted trapezoid inner box design

5.Hot stable, high performance salt spray nozzle

6.Precision salt fog collection device

7.Three high quality heating systems

8.Humanized operation interface(HMI)

9.Control and Display

10.Automatic air purging device interlocks with the top cover

11.Temperature and humidity Sensor and display

12.Simple and practical program system

13.Multiple safety protection system

14.Temperature and humidity chart display



Standards for:



ASTM-B117,B287,B-380,JISD-0201,H-8610,H8502,Z-2371,K-5400,DIN50021-75,ISO3768,3769/3770,GJB150,CNS3627,3885,4159,7669/8866,GB/T2423.17,GB/T10125-1997



Product features:



1.Comprehensive anticorrosion structure,High-performance reinforced multi-layer glass fiber polyester resin box body,various auxiliary  accessories are also made of temperature resistant and corrosion resistant materials, with reinforced steel skeleton inside.Good resistance to chemicals and high temperature corrosion, no electrochemical corrosion reaction occurs with the test piece.



2.Programmable control with touch screen, complete the display test data,can be switched between Chinese and English.



3.spray, dry,moist heat,low temperature period completely controllable regulation.



4.Special precision nozzles can generate fog smoothly,ensure the salt spray is distributed evenly and the collection rate in the tank is accurate.



5.Mobile external salt solution water tank,flow meter precise salt control salt solution flow.



6.box cover is open for pneumatic spring support,switch optionally,Equipped with adjustable caster and base,free and relaxed .



7.After the test, there is an automatic defogging device,test product can be observed clearly.



8.Salt spray tester has multiple system protection, safe and reliable,all electrical appliances are equipped with circuit breakers,all industrial heaters have electronic and mechanical over-heating protection.



9.Air conditioning devices and pressure gauges can monitor air pressure,this is also required to meet the requirements of accurate spray distribution.



Standard Delivery:



Color Touch Screen Controller 1 Water level Controller 1
Heating Slot Safe Temperature Controller 2 Warning light 1
Pressure Gage 1 Over temperature protector 2
electromagnetic Contactor 1 Supporter Rod 1
electromagnetic Contactor Solid 1 Acl reagent 500g 2
NOX LY2N relay 1 10L Solution Barrel 1
NOX MY2N relay 4 80cm² Collecting Cup 2
QJA V2A702-03 magnetic valve 4 50ml measuring cylinder 2



Technical Specification:



Name Salt Spray and Cyclic Corrosion Test Chamber
Model QST-1000-CCT
Internal Dimension

165x90x70cm(WxDxH)



Outer Dimension 216x120x145cm(WxDxH)
Power supply AC 220V/50HZ/35A
Materials
Test Chamber glass fiber reinforced plastics, thickness: 5mm
Cover glass fiber reinforced plastics, with viewing window,
auto lifting system to control cover
Solution Tank With water level, PVC board, thickness: 5mm
Chamber Frame Glass fiber, adjustable test angle
Saturation barrel Saturation barrel
Temperature Available for CNS, JIS, ASTM, according to specific application
Salt Spray Test 1.Test Chamber: 35℃±1℃
2.Saturation Barrel: 47℃±1℃
Copper-accelerated acetic acid-salt spray test 1.Test Chamber: 50℃±1℃
2.Saturation Barrel: 63℃±1℃
Test standard CNS, JIS, ASTM
Spray Mode
Tapered disperser Adjustable Spray volume, and make spray even
Nozzle Precision Glass nozzle
Spray Volume 1~2mL/80cm²1hr
Defogging Mode Air enforcing and drain out
Control System

Chamber Temperature/

Saturation barrel

Touch screen controller; temperature resolution 0.1℃,
from 0-99.90.1℃; PID auto tuning
Heating Slot Safe Temperature 0~99℃
First grade Pressure Structure Adjustment 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm²
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable;
spraying pressure adjust to 1.0Kg/cm²
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²



Optional Frame:

AC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch ScreenAC220V 50HZ / 60HZ Cyclic Corrosion Test Chamber With Touch Screen
