| Model: | IZXQ-3 | Name: | Hydraulic Water-cooling Automatic Sample Mounting Press |
|---|---|---|---|
| Mounting Method: | Automatically Completed With Sound And Light Alarm Function | Pressure: | Adopts Hydraulic Pump With Higher Pressure 150bar |
| Feature: | Unique Cold And Heat Separation Design Makes It Safer And Stable | LCD Display: | High-definition Touch Screen Displays Pressure And Temperature In Real Time |

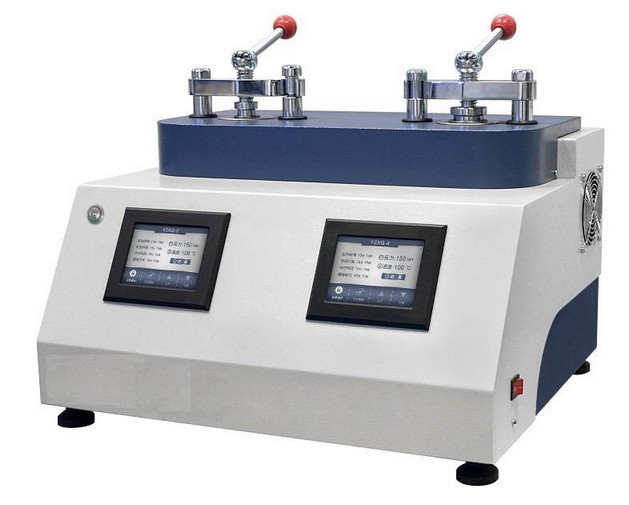

Hydraulic Water Cooling Two Moulds Automatic Mounting Press iZXQ-3
iZXQ-3 is an advanced hydraulic water-cooling automatic sample mounting press. The mounting process is controlled by the program, which realizes the one-key operation of heating, loading, dwell, cooling and unloading process.
The sample mounting is automatically completed with sound and light alarm function, without the need of the operator on duty.
The machine adopts hydraulic pump with higher pressure, which makes the sample more compact. Two moulds specification arbitrary selection, the control and operation are independent.
Unique cold and heat separation design makes it safer and stable.
High-definition touch screen displays pressure and temperature in real time. With water cooling system, the mounting speed is fast. One machine can be used as two, which makes sample preparation easier and more labor saving, the mounting quality is also better and more stable.
Technical Parameters:
| Model | iZXQ-3 |
| Mould Diameter | Ф25mm and Ф30mm |
| Cavity Height | 108mm, effective 60mm |
| Heating Power | Ф25mm/Ф30mm 1.8kW; Ф40mm 2.4kW |
| Pressure | 150bar (equivalent to 15Mpa, 150kgf/cm2, adjustable) |
| Heating Temperature | 0~255℃ |
| Hold Time | 0~99min |
| Total Time | 6min30s for Ф30mm |
| Cooling Method | External water source cooling |
| Power Supply | AC220V, 50Hz,16A |
| Dimensions | 650×600×550mm |
| Net Weight | 105Kg |
