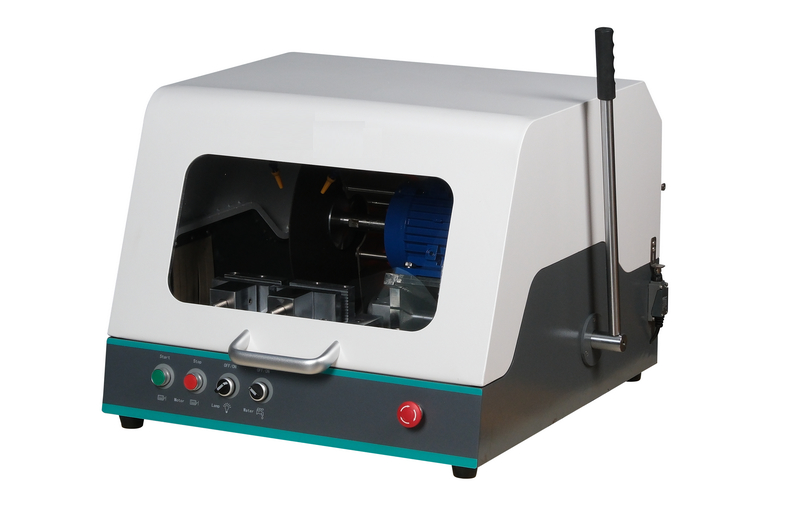

Manual Metallographic Sample Cutting Machine with Cutting Section 80mm

Manual Metallographic Sample Cutting Machine with Cutting Section 80mm

Brief Introduction:

HQG-80 cutting machine can be used to cut general metallographic and petrographic materials to ensure that it can be cut in a safe state.

For the sample, this machine adopts a fully enclosed double casing structure, and equips with a cooling water tank, which can make the configured cooling liquid be recycled.

In order to prolong the service life of the equipment and the convenience of operation and maintenance, the inner casing and sand of the machine, the main parts such as wheel bushings, jaws and work surfaces are made of corrosion-resistant materials, which are especially suitable for metallographic laboratories of factories, universities and research institutes.

Technical Specifications:

Main Functions and Features:
1. The main parts and components such as the shaft sleeve and the work surface are made of corrosion-resistant materials with long service life.

2. The workbench and the motor fixing frame are made of aluminum alloy, and the surface is sandblasted, which is beautiful and durable.

3. The workpiece is fixed by quick fixture, which is convenient, fast, safe and reliable (optional);
4. The overall mechanism rotates smoothly, with low noise and long service life;

5. The perspective adopts impact-resistant transparent PC board, which is safe and reliable;
6. The waterproof LED light is used for lighting, which is convenient to observe the whole process of cutting;

7. With cooling device and water tank, the cooling liquid can be recycled;
8. The maximum cutting diameter is 80mm.

Standard Delivery:
