Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified

China Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified supplier
Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified supplier Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified supplier Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified supplier Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified supplier

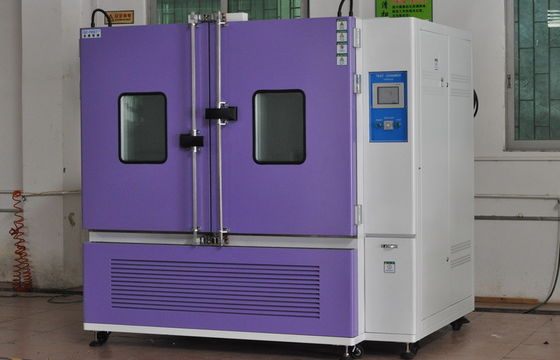

Large Image :  Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: QTH-2000B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
Fluctuation: ±0.5℃; ±2.5%R.H. Heating Rate: -20℃ ~ 150℃ Within 40mins
Exterior Material: Stainless Steel With Baking Paint Humidity: Range 20% ~ 90% RH
Dimension: Internal 2000L, 200 X 100 X 100cm Temperature: Range -20℃ ~ +150℃


Temperature Cycling Laboratory Equipment Constant Humidity Climatic Test Chamber



Brief Introduction:

Unique shape with high performance material, used to testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components.



Temperature and humidity test chambers are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing.



Features:

1, RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.


2, Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.


3, Touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.


4, Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.



5, Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.


6, Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.


7, Left side of chamber with diameter 50mm cable port for power-on test.


8, Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.



Temperature Humidity Test chambers are applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



Temperature humidity environmental test chamber simulats under the condition of product in humid climate environment combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself.



Optional Accessories:
Cable Port: Size of cable port is available for 100mm
Water purifier RO 80: Continuously provide purified water for humidifying heater and wet-bulb
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (10C, 15%RH) for electrostatic reliability tests.
Defrosting Device: The chamber automatically detects and melts the frost on the evaporator when operating below 0deg in order to allow continuous operation
Electronic humidity sensor: Precision Humidity Sensor with stainless steel protection tube



Vertical Test Chambers conform following standards:
IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
MIL-STD-202F (GJB360.8-87) High temperature life testing
MIL-STD-810D (GBJ150.3) High temperature method
MIL-STD810D (GBJ150.4) Low temperature method
IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.
IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.
MIL-STD-810D (GJB150.9-93) Moist heat testing method



Model Selection:

Model Temp and Humidity Range Internal Dimension
(W x H x D) cm
Exterior Dimension
(W x H x D) cm
QTH-V80A

0℃~﹢150℃

20%~98%RH

40x50x40 60x110x95
QTH-V150A 50x60x50 70x120x105
QTH-V225A 50x75x60 70x135x115
QTH-V416A 70x85x70 90x145x125
QTH-V800A 100x100x80 120x160x135
QTH-V1000A 100x100x100 120x160x155
QTH-V80B

-20℃~﹢150℃

20%~98%RH

40x50x40 60x110x95
QTH-V150B 50x60x50 70x120x105
QTH-V225B 50x75x60 70x135x115
QTH-V416B 70x85x70 90x145x125
QTH-V800B 100x100x80 120x160x135
QTH-V1000B 100x100x100 120x160x155
QTH-V80C

-40℃~﹢150℃

20%~98%RH

40x50x40 60x110x95
QTH-V150C 50x60x50 70x120x105
QTH-V225C 50x75x60 70x135x115
QTH-V416C 70x85x70 90x145x125
QTH-V800C 100x100x80 120x160x135
QTH-V1000C 100x100x100 120x160x155
QTH-V80D

-70℃~﹢150℃

20%~98%RH

40x50x40 60x110x95
QTH-V150D 50x60x50 70x120x105
QTH-V225D 50x75x60 70x135x115
QTH-V416D 70x85x70 90x145x125
QTH-V800D 100x100x80 120x160x135
QTH-V1000D 100x100x100 120x160x155
Remark: 20%~98%RH is standard humidity range, support custom made 10%~98%RH Or 5%~98%RH
Support custom made dimension



Specifications:

Control Mode Balanced Temperature and Humidity Control System
Operating Temp. & Humid. Range +5deg ~ +35deg; <85%R.H.
Temp. range A=0deg, B=-20deg, C=-40deg, D=-70deg ~ +100deg(150deg)
Humid. range 20% ~98%R.H.
(Optional: 5%~98%R.H.)
Temp. & Humid. fluctuation ±0.5deg; ±2.5%R.H.
Temp. & Humid. uniformity ≤2.0deg; ≤3%R.H.
Temp. & Humid. Deviation ≤1.0deg; ≤2%R.H.
Temp. Heating Time 0deg ~ +100degwithin 30min; -20deg ~ +150degwithin 45min
Temp. Cooling Time 20deg ~ -40degwithin 60min; 20deg ~ -70degwithin 85min
Power Supply AC380V, 50/60HZ, Three-phase (Specified by User)
Exterior Material stainless steel with baking paint
Interior material SUS304# Stainless steel
Insulation material Rigid Polyurethane foam
Refrigeration system Mechanical cascade refrigeration system; Fin type radiator
Circulation system Mechanical convection system
Humidification Water Supply

Automatic water regulating, recoverable supply system,

water shortage alarm system

Water quality Distilled water only, 20L Water tank capacity
Controller Touch Screen Controller
Safety devices Overheat protector Switch, Compressor overload protector Switch
water shortage protector Switch, Humidifier protector Switch
Fault alarm system
Accessories Viewing window, Chamber Illumination, Cable port ø50mm,
Product shelf slides 2 pieces, universal casters
Touch screen controller



Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified

Internal 2000L Temperature Humidity Alternate Test Chamber Range 20% - 90%RH CE Certified
