270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel

China 270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel supplier
270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel supplier 270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel supplier 270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel supplier 270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel supplier

Large Image :  270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel

Product Details:

Place of Origin: Dongguan
Brand Name: q1-test
Certification: CE,ISO,SGS
Model Number: HL-90-TS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Material: PVC Board Model: HL-90-TS
Color: Gray Lab Capacity: 270L
Power: AC 220V , 15A,1Ф, 50HZ Saline Capacity: 25L

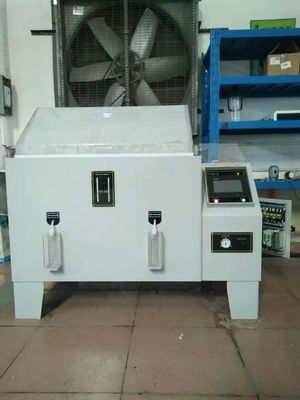

270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel



Product introduction:



The AHL Series Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing anti corrosion treatment for a variety of materials, corrosion resistance of their products. It can be subjected to neutral salt spray test (NSS), Acetate Salt Spray Test (ACSS), Copper salt accelerated salt spray test (CASS).


Features:


1. The machine is made of imported PP rigid plastic plate, with solid and firm structure, acid and alkali resistance, high temperature resistance, corrosion resistance and never aging, suitable for neutral salt spray NSS, acetic acid test ASS, acetic acid CASS and other tests Claim.

2. The use of precision plastic nozzle and conical spray device, fog uniform, fast, nozzle long life, no crystallization.
 vc

3. Using LCD touch screen, can be connected with the computer to achieve remote monitoring and operation, any switch in English.

4. comes with USB interface, you can insert the U disk download curve, historical data (can replace the recorder) (optional)

5. Spray time can be controlled internally without additional time relay.

6. Through the flow meter, high pressure valve to adjust the salt flow and compressed air pressure to ensure uniform salt fog settlement.

7. The use of manual water system, water level is insufficient with automatic replenishment function to ensure that the test is not interrupted.


Standard for:


1. GB/T 10125-1997 salt spray test
2. GB/T 10587-2006 salt spray test
3. GB/T 1771-2007 salt spray test
4. ASTM B117-97 salt spray test
5. GB10593.2-1990 salt spray test
6. QB/T 3826-1999 salt spray test
7. QB/T 3827-1999 salt spray test
8. GB/T 12967.3-2008 salt spray test
9. CNS 4158 salt spray test
10. CNS 4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
ISO-9227, ASTM-B117, JIS-D0201, H8502, H8610, Z2371, GB/T10125





Technical parameters:

Please Note Small Type of 60 and 90 do not meet standard of ASTM B117.

Button Model HL-60-SS HL-90-BS HL-120-NS HL-160-NS HL-200-NS
LCD touch screen Model HL -60-TS HL -90-TS HL -120-TS HL -160-TS HL -200-TS
Inner size (mm) W 600 900 1200 1600 2000
D 450 600 850 850 950
H 400 500 500 550 600
External size (mm) W 1130 1460 1900 2300 2700
D 630 910 1150 1150 1350
H 1070 1280 1500 1550 1600
Lab Capacity(L) 108 270 480 800 1440
Saline Capacity(L) 15 25 90 90 120
Inside Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Pressure Bucket Temperature (NSS ACSS) Test temperature : 47°C±1°C
(CASS) Test temperature : 63°C±1°C
Brine Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Test solution NSS: pure water + NaCl (PH6.5~7.2)
CASS: Pure water + NaCl + CuCl (PH3.0~3.2)
Compressed Air
Pressure
2kgf/cm2 2kgf/cm2 6kgf/cm2 6kgf/cm2 6kgf/cm2
Power AC 220V , 15A,1Ф, 50HZ


Optional accessories:


1. Control Panel : Key panel / LCD panel (optional)
2. Working way: steam heating type / air heating type (optional)
3. Salt concentration meter

4. Air compressor


270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel270 Liters Salt Spray Test Machine , Salt Spraying Chamber With Touch Screen Panel
