Product Details:
Payment & Shipping Terms:
|
| Accuracy: | (5%n+5d) | Operating: | Temperature:0~50℃(32~122F) |
|---|---|---|---|
| Conditions: | Humidity:<80%RH | Range: | 0~1,999 Lux |
| Resolution: | 1 Lux | Power Supply: | 1x 9V 6F22 |
| High Light: | non destructive testing machine,non destructive testing instruments |
||

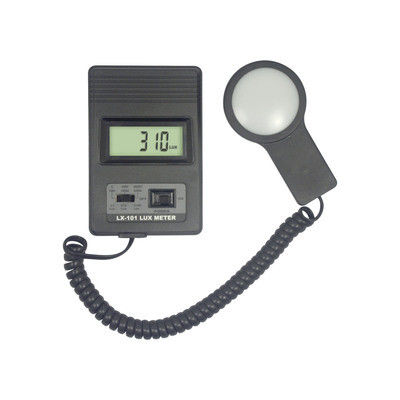

Digital Display Peak Holding Lux Meter LX-101 Measuring luminosity and Brightness
Application:
The Lux Meter is a specialised instrumentation measuring luminosity, brightness.
Features:
* Digital display gives exact reading with no guessing or errors.
* Separate light sensor allow user take measurement at optimum position.
* Wide measuring range and high resolution.
* In build low battery indicator.
* Max value hold function.
* The use of durable, long lasting components, including a stronge, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortabley in either hand.
Specifications:
| Model | LX-9626V | LX-9621V | LX-101 | |
| Display | LCD | |||
| x1 Grade | Range | 0~199 Lux | ------- | |
| Resolution | 0.1 Lux | ------- | ||
| Range | 200~1,999 Lux | 0~1,999 Lux | ||
| Resolution | 1Lux | 1 Lux | ||
| X10 Grade | Range | 2,000~19,999 Lux | ||
| Resolution | 10 Lux | |||
| X100 Grade | Range | 20,000~200,000 Lux | 20,000~50,000Lux | |
| Resolution | 100 Lux | |||
| Foot Candle | Range | 0~20,000 FC | 0~5,000 FC | ------- |
| Resolution | 1 FC | ------- | ||
| Accuracy | (5%n+5d) | |||
| Operating | Temperature:0~50℃(32~122F) | |||
| Conditions | Humidity:<80%RH | |||
| Power Supply | 4x1.5V AAA(UM-4)Battery | 1x9V 6F22 | ||
| Dimensions | Main Unit | 140x72x34mm | 108x72x23mm | |
| Sensor | Diameter:50 mm | Diameter:58mm | ||
| Weight(Including Batteries) | 200g | 208g | ||
| Standard Accessories | Main Unit | |||
| Split Type Sensor | ------- | |||
| Operation Manual | ||||
| Carrying Case(B04) |
Carrying Case (B07) |
|||
| Optional Accessories | RS-232C Data Cable with Software | ------- | ||
| Bluetooth Data Adapter with Software | ------- | |||
