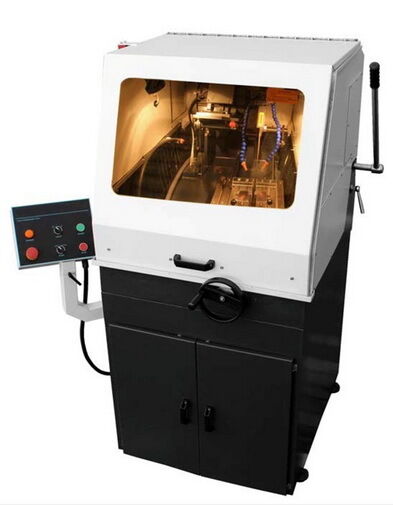

Electronic Braking System Manual Abrasive Cutter iCut-400 with T-slot Table
Brief Introduction:
The iqualitrol iCut-400 is a floor standing manual metallographic abrasive cutter with robust and durable design. This is a versatile cutting machine, designed for sectioning an extremely wide range of materials, such as ferrous metals, non-ferrous metals, fasteners, foundry castings, heat treated parts, rocks and ceramics, etc.
The iqualitrol iCut-400 has table feed and wheel feed modes. Ideal for material test laboratory, as well as for small industrial or production applications.
Main Features:
1, Aluminum casting, powder coated;
2, T-slot Table made of stainless and aluminum alloy, Fast Cam Locking Vises, made of 304 stainless steel;
3, Chamber illumination with LED;
4, Electronic braking system for faster stopping the blade;
5, Side port window for longer samples, Large workspace;
6, Mobile plastic recirculation coolant tank.
Technical Specifications:
| Description | iCut-400 |
| Feed mode | Table feed and wheel feed, manual |
| Blade | 400*32*2.5mm |
| Blade speed(rpm) | ● 2800; ○ Variable speed |
| Table | 361*350 (WxD,mm) |
| Motor | 5.5KW |
| Power |
●3P-380V, 50/60Hz, ○3P- 220,440,480V |
| Accessories | |
| Diamond Blade | ○ |
| SiC blade | ○ |
| Alumina Blade | ● |
| Fast Cam Locking Vises | ● |
| Vertical Clamping vise | ○ |
| Vertical Champing vise with chain |
○ |
| Customized vises | ○ |
| Cutting fluid | ○ |
●standard ○option
