Surface Roughness Tester SRT-6200

China Surface Roughness Tester SRT-6200 supplier

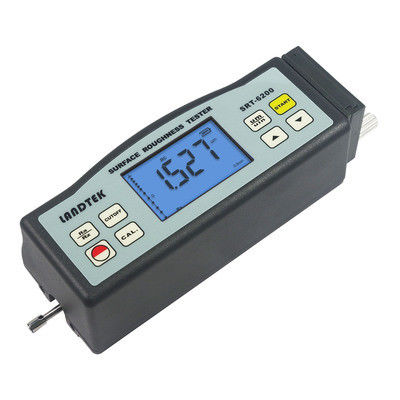

Large Image :  Surface Roughness Tester SRT-6200

Product Details:

Brand Name: iqualitrol
Model Number: SRT-6200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Parameters: Ra, Rz Accuracy: <10%
Measuring Range: Ra: 0.05~10.00m Rz:0.020~100.0m Fluctuation Of Display Value: <6%
Resolution: 0.001/0.01/0.1 Evaluation Length: 1~5L Optional
Highlight:

non destructive testing instruments

,

fruit hardness tester



Surface Roughness Tester SRT-6200



Application:

Widely used in production site to measure surface roughness of various machinery-processed parts.



Features:

Be compatible with four standards of ISO, DIN, ANSI and JIS.

Multiple parameter measurement: Ra, Rz.



Highly sophisticated inductance sensor.

Built-in lithium ion rechargeable battery and control circuit with high capacity.



Small in size, light in weight and easy to use.

Manual or automatic shut down.



Metric /Imperial Conversion.

Use USB/RS-232 data output to connect with PC, Provide Bluetooth data output choice.



Principle:

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester.



The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.



The exclusive DSP processes and calculates and then outputs the measurement results on LCD.



Technical Specifications:

Standards GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Parameters Ra,Rz
Measuring Range

Ra:0.05~10.00m Rz:0.020~100.0m

/1.000~400.0inch /0.780~4000inch

Accuracy <<10%
Fluctuation of Display Value <<6%
Resolution 0.001/0.01/0.1
Sensor Radius of Probe Pin 10mm
Material of Probe Pin Diamond
Measurement Force of Probe 16mN(1.6gf)
Probe Angle 90
Vertical Radius of Guiding Head 48 mm
Maximum Driving Stroke 17.5mm/0.7inch
Cutoff length(l) 0.25mm,0.8mm,2.5mm
Driving Speed Sampling When Length=0.25mm,Vt=0.135 mm/s
When Length=0.8mm,Vt=0.5mm/s
When Length=2.5mm,Vt=1mm/s
Returning Vt=1mm/s
Profile Digital Filter RC,PC-RC,GAUSS,D-P
Evaluation Length 1~5L Optional
Data Memorize -------
Operating Conditions Temp:0~50℃ Humidity:<80%RH
Power Supply Built -in Rechargeable Li-ion Battery
Dimensions 140x52x48mm
Weight 420g
Standard Accessories Main Unit
Standard Sample Plate SSP-100
Standard Sensor SSP-100
Small Screwdriver
Power Adapter
Carrying Case ( B09 )
Operation Manual
Optinal Accessories RS-232C Cable with Software
Bluetooth Adapter with Software
Extension Rod SER-150
Groove Stylus SRP-110
Curvature Probe SRP-120
Measurement Stand SRS-1
