Product Details:
Payment & Shipping Terms:
|
Chamber Material: | Glass Fiber Reinforced Plastics | Test Mode: | Salt Spray, Dry, Wet, Cyclic Test |
---|---|---|---|
Nozzle: | Precision Glass Nozzle | Spray Volume: | 1~2mL/80cm²1 Hour |
Defogging: | Air Enforcing And Drain Out | Panel: | Touch Controller |
Highlight: | cyclic corrosion chamber,corrosion testing machine |

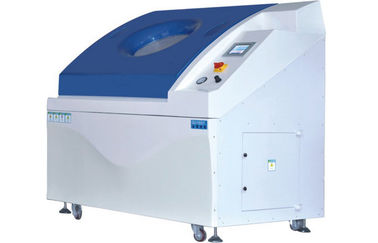

ASTM G85 Salt Spray Machine Cyclic Corrosion Test Chamber with Hydraulic Control Cover
Brief Introduction:
Cyclic corrosion testing is intended to be a more realistic way to perform salt spray tests than traditional, steady-state exposures. Because actual atmospheric exposures usually include both wet and dry conditions, it makes sense to pattern accelerated laboratory tests after these natural cyclic conditions. Research indicates that, with cyclic corrosion tests, the relative corrosion rates, structure and morphology are more similar to those seen outdoors.
Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.
There is national testing standard for salt spray test, with acetic acid salt spray corrosion test, Copper-accelerated acetic acid-salt spray test, and Cyclic corrosion test. It apply glass fiber reinforced plastics and touch screen auto running, it can run all the environmental test in one chamber, conform relevant international standards.
PSA D17 1058 Neutral salt spray test, Can be used to test the relative resistance to corrosion of coated metallic specimens, when exposed to a salt spray climate at an elevated temperature.
QST-420-CCT is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.
Technical Specification:
Name | Salt Spray and Cyclic Corrosion Test Chamber |
Internal Dimension | 1000x700x600(WxDxH)mm |
Outer Dimension | 1560*1000*1580(W*D*H)mm |
Power supply | AC 220V/50HZ/20A |
Materials | |
Test Chamber | glass fiber reinforced plastics, thickness: 5mm |
Cover | glass fiber reinforced plastics, with viewing window, auto lifting system to control cover |
Solution Tank | With water level, PVC board, thickness: 5mm |
Chamber Frame | Glass fiber, adjustable test angle |
Saturation barrel | Saturation barrel |
Temperature | Available for CNS, JIS, ASTM, according to specific application |
Salt Spray Test | 1.Test Chamber: 35℃±1℃ |
2.Saturation Barrel: 47℃±1℃ | |
Copper-accelerated acetic acid-salt spray test | 1.Test Chamber: 50℃±1℃ |
2.Saturation Barrel: 63℃±1℃ | |
Test standard | CNS, JIS, ASTM |
Spray Mode | |
Tapered disperser | Adjustable Spray volume, and make spray even |
Nozzle | Precision Glass nozzle |
Spray Volume | 1~2mL/80cm²1hr |
Defogging Mode | Air enforcing and drain out |
Control System | |
Chamber Temperature/ Saturation barrel |
Touch screen controller; temperature resolution 0.1℃, from 0-99.90.1℃; PID auto tuning |
Heating Slot Safe Temperature | 0~99℃ |
First grade Pressure Structure Adjustment | 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm² |
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable; spraying pressure adjust to 1.0Kg/cm² |
|
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm² |
