Product Details:
Payment & Shipping Terms:
|
Chamber Material: | Glass Fiber Reinforced Plastics | Nozzle: | Precision Glass Nozzle |
---|---|---|---|
Panel: | Touch Controller | Internal Size: | 2100 X 900 X 800mm |
Spray Volume: | 1~2mL/80cm²1 Hour | Defogging: | Air Enforcing And Drain Out |
Highlight: | cyclic corrosion chamber,corrosion test chamber |

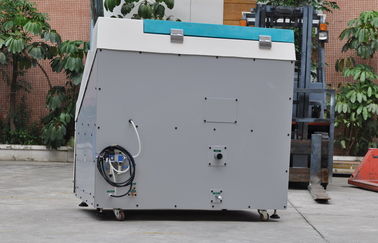

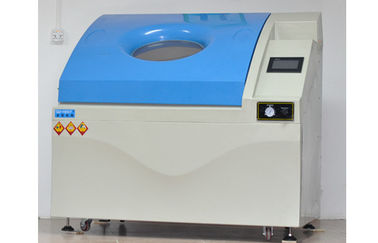

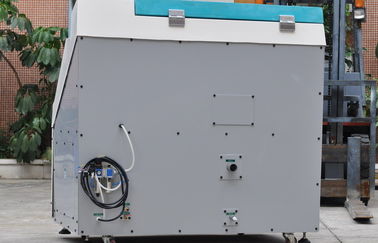

FRP Cyclic Corrosion Test Chamber for NSS CASS Testing with
Touch Screen Controller
Brief Introduction:
Cyclic Corrosion Testing (CCT) has evolved in recent years, largely within the automotive industry, as a way of accelerating real-world corrosion failures, under laboratory controlled conditions. As the name implies, the test comprises different climates which are cycled automatically so the samples under test undergo the same sort of changing environment that would be encountered in the natural world.
Consequently, cyclic tests usually give better correlation to outdoors than conventional salt spray tests. They are effective for evaluating a variety of corrosion mechanisms, including general, galvanic and crevice corrosion.
Cyclic corrosion testing is intended to be a more realistic way to perform salt spray tests than traditional, steady-state exposures. Because actual atmospheric exposures usually include both wet and dry conditions, it makes sense to pattern accelerated laboratory tests after these natural cyclic conditions. Research indicates that, with cyclic corrosion tests, the relative corrosion rates, structure and morphology are more similar to those seen outdoors.
Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.
It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.
Technical Specification:
Name | Salt Spray and Cyclic Corrosion Test Chamber |
Internal Dimension | 1000x700x600(WxDxH)mm |
Outer Dimension | 1560*1000*1580(W*D*H)mm |
Power supply | AC 220V/50HZ/20A |
Materials | |
Test Chamber | glass fiber reinforced plastics, thickness: 5mm |
Cover | glass fiber reinforced plastics, with viewing window, auto lifting system to control cover |
Solution Tank | With water level, PVC board, thickness: 5mm |
Chamber Frame | Glass fiber, adjustable test angle |
Saturation barrel | Saturation barrel |
Temperature | Available for CNS, JIS, ASTM, according to specific application |
Salt Spray Test | 1.Test Chamber: 35℃±1℃ |
2.Saturation Barrel: 47℃±1℃ | |
Copper-accelerated acetic acid-salt spray test | 1.Test Chamber: 50℃±1℃ |
2.Saturation Barrel: 63℃±1℃ | |
Test standard | CNS, JIS, ASTM |
Spray Mode | |
Tapered disperser | Adjustable Spray volume, and make spray even |
Nozzle | Precision Glass nozzle |
Spray Volume | 1~2mL/80cm²1hr |
Defogging Mode | Air enforcing and drain out |
Control System | |
Chamber Temperature/ Saturation barrel |
Touch screen controller; temperature resolution 0.1℃, from 0-99.90.1℃; PID auto tuning |
Heating Slot Safe Temperature | 0~99℃ |
First grade Pressure Structure Adjustment | 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm² |
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable; spraying pressure adjust to 1.0Kg/cm² |
|
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm² |
