| Internal Size: | 100*100*100cm (W*D*H) | Test Temp: | 25~40℃(natural Temperature Without Control) |
|---|---|---|---|
| Test Humidity: | 45~85%RH(natural Temperature Without Control) | Dust Concentration: | F1: 60000mg/m3 |
| Dust Spray Period: | 1sec~99hr | Air Source: | 3~5kg/cm3 |
| Highlight: | accelerated aging chamber,environmental testing equipment |
||

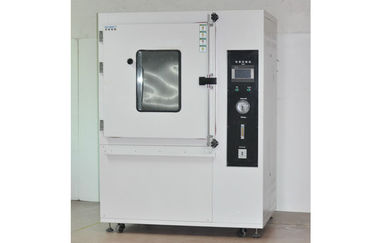

Testing Chamber Dustproof Lab Environmental Test Chamber
Sand And Dust Test
product description:
Dust Resistance Test Chamber mainly for all kinds of auto parts, electricians, electronic parts to do dust and dust resistance test,Its main test includes floating dust (f), flowing dust (c),the test parts include lamps, meters, seat belt retractors, seat adjusters, electrical dust boots, steering system components, shaft, door locks and other permanent for dust.
Executive standard:
GB2423.37-2006 basic environmental test procedures for electric and electronic products.
Test L: Dustproof test method.
GB4208-2008/IEC60529:2001 shell protection class(IPX5/IPX6).
GJB150.12-2009 dust resistance test.
GB700-1-2007 shell protection test specified in Chapter 9.
GB/T4942.2 low voltage electrical equipment shell protection class.
GB/T4942.2-2006 class of protection(IP code) for the whole structure of rotating motor classification.
GB10485 dust proof test method and equivalent JIS, DIN, MIL/STD810D dust resistance test standards.
Technical Specification:
| Model | QDT-600 | QDT-800 | QDT-1000 |
| Interior dimensions(mm) | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Exterior dimensions(mm) | Depend on the model | ||
| Test Temp. | 25~40℃(natural temperature without control) | ||
| Test Humid. | 45~85%RH(natural temperature without control) | ||
| Dust spray period | Intermittent control, continuous, cycle stop (adjustable). | ||
| Test dust | Talcum powder for standard machine(other sand dust, choose by yourself) | ||
| Dust blowing mode | The test dust is blown to the test space by the medium pressure turbo pump dust suction fan | ||
| Dust shaking mode | Use the electric motor to shake off the dust attached to the inner wall of the machine and recycle it to the dust collector | ||
| Inner box material | SUS304# stainless steel | ||
| Outer box material | Cold rolled steel plate + powder baking paint | ||
| Sample holder | SUS304# stainless steel,spacing can be adjusted freely, easy to use, 1 piece | ||
Product Features:
1.Large transparent windows with lights and windows to scrape dust, convenient to directly observe the condition of internal test objects.
2.LCD touch screen controller, can realize remote monitoring and operation through computer connection. USB storage device is supported, and Chinese and English can be freely switched.Control temperature, blowing time, floating time, buffeting time, standing time and cycle period respectively.
3. Uniformly synchronization hammer vibration dust emission device and electrostatic eliminator device can avoid a large amount of dust on the chamber wall.
4. Auto adjust dust concentration 100mg/m3-60000mg/ m3
5, Automatic dust dehumidification system, to reduce the water content of dust and make sure dust in stable quality.
6, Available to supply IEC, JIS industrial dust, Arizona ash, butenandt cement, talc, Kanto sand dozens of respirable dust and not respirable dust.
7, Disposable dust belt, ensuring the safety of operator
8, Automatic dust recovery device, reduce into chamber cleaning.
