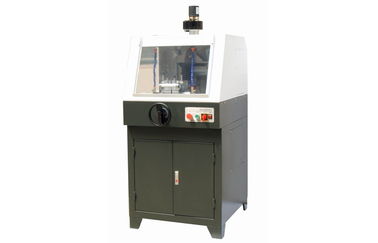

Sample Abrasive Cutting Metallographic Preparation Equipment Cut Section 100mm X 120mm

China Sample Abrasive Cutting Metallographic Preparation Equipment Cut Section 100mm X 120mm supplier

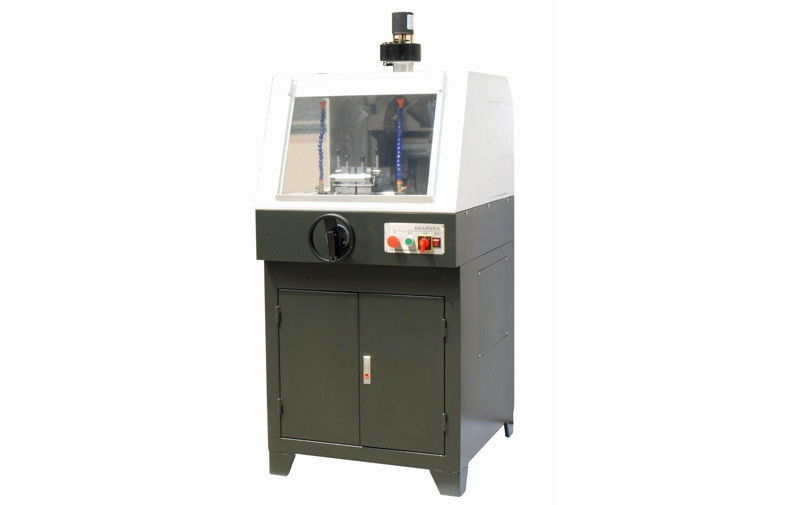

Large Image :  Sample Abrasive Cutting Metallographic Preparation Equipment Cut Section 100mm X 120mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iCut-409

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Cutting Section: 100 X 120mm Rotation Speed: 2800rpm
Cutting Wheel: 380 X 2.8 X 32mm Motor: 4Kw, AC380V/50Hz/3Ph
Applications: Round Cylinder, Polygon, Protruding Platforms Cooling: Water Cooling
High Light:

metallographic sample cutting machine

,

metallurgical laboratory equipment



Metallographic Sample Abrasive Cutting Equipment Cut Section 100mm X 120mm



Product Information:

iCut-409 multifunctional cutting machine mainly used to cut irregular general metallographic sample materials such as round cylinder and polygon and protruding platforms, etc.



This machine adopts double-shells totally closed structure and double quick clamp device to guarantee cutting under absolutely safe status.



In order to avoid the sample organization burns during cutting, this machine was furnished with the strong cooling system, and can avoid even little burn of the sample surface.



Main Parameters:

Cutting Section 100mm x 120mm
Rotation Speed 2800rpm
Cutting Wheel 380 x 2.8 x 32mm
Motor 4KW, AC380V/50Hz/3Ph
Dimension 850 x 760 x 1400mm
Net Weight 380Kg



Specimen Cut-off Machine:

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
