|Power Supply:||380V50HZ/3Ph/4 Wires||Speed:||Rotation Speed 2800rpm|
|Diameter:||Max Cutting Diameter Φ60mm||Size:||Cut Disc Φ250mm X1.2mm X32mm|
metallurgical sample preparation equipment,
metallographic sample cutting machine

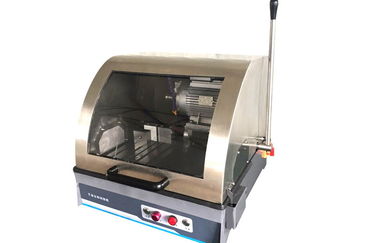

XCut-342 Precision Cutting Machine With 2.4KW Motor Lab Instrument
XCut-342 Metallographic sample cutting machine is suitable for cutting various metal, non metal material in order to observe the metallographic, petrographic structure.
The machine has a cooling device. When using the configured cooling liquid, the heat may be taken away to avoid overheating. It is easy for the user to operate the machine. Therefore the machine is one of the equipments for samples in the factories, scientific research institution and colleges laboratory.
|Input voltage||380V50HZ/3Ph/4 Wires|
|MAX cutting diameter||Φ60mm|
|Cutting wheel size||Φ250mm x1.2mm x32mm|
|Dimension||740mm x620mm x450mm|
Specimen Cutting Machine:
When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.
One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.
Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
