Product Details:
Payment & Shipping Terms:
|
| Material: | FRP / GRP | Inner Size: | 1000*700*600mm |
|---|---|---|---|
| Salt Fog Settlement: | 1～2mL/80cm2·h | Drying Temperature: | 10～50℃±2℃ |
| Highlight: | salt spray corrosion test chamber,salt mist chamber |
||

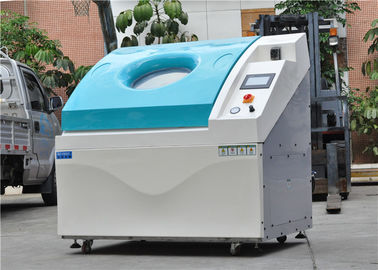

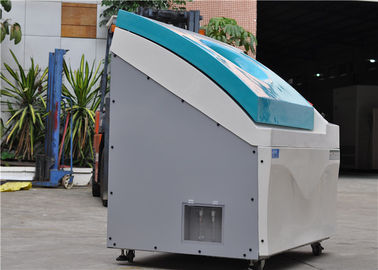

CCT Complex Salt Spray Test Chamber
Product introduction:
Cyclic corrosion testing simulates the closet actual natural environment,such as salt spray drying,humidity and temperature alternating. The testing is strict than natural environment and can be programmed or tested individually.
There is national testing standard for salt spray test,with acetic add salt spray corrosion test, Copper-accelerated acetic acid-salt spray test,and Cyclic corrosion test.QST-420-CCT apply glass fiber reinforced plastic and touch screen auto running,it can run all the environment test in one chamber,conform relevant international standards.
It is widely used to test corrosion resistance of automotive,paint,surface coating,chemical,aerospace,electronic,car industry,offshore and defense industries.
| Name | Salt spray and Corrosion Cycling Test Chamber | ||
| Model | QST-420-CCT | QST-1000-CCT | QST-1500-CCT |
| Internal dimensions (mm) | 1000*700*600 | 1600*900*700 | 2100*900*800 |
| Overall dimensions (mm) | 1560*1000*1350 | 2160*1200*1450 | 2711*1150*1570 |
| Temperature range | +15~+60ºC | ||
| Humidity range | 45%~98%RH | ||
| Temperature tolerance | ±2ºC | ||
| Humidity tolerance | +2~-3%RH | ||
| Temperature Uniformity | <=2. 0ºC | ||
| Temperature Fluctuation | ±0.5ºC | ||
| Temperature Resolution | ≥0.5ºC | ||
| Spray deposition | 1~2mL/80cm2 ·hr(adjustable) | ||
| Test Time | 0-999.9h/m/s ( adjustable) | ||
| Solution Tank | ≥100L | ||
| Load of Interior | ≥50KG | ||
| Power | AC1Ф220V 20A 50HZ | ||
| Materials | |||
| Test Chamber | glass fiber reinforced plastics, thickness:5mm | ||
| Cover | glass fiber reinforced plastics with viewing window, auto lifting system to control cover | ||
| Solution Tank | With water level, PVC board, thickness: 5mm | ||
| Chamber Frame | Glass fiber,adjustable test angle | ||
| Saturation barrel | Saturation barrel | ||
| Temperature | Available for CNS; JIS, ASTM,according to specific application | ||
| Salt Spray Test | 1.Test Chamber:35ºC±1ºC | ||
| 2.Saturation Barrel:47ºC±1ºC | |||
| Copper-accelerated acetic acid-salt spray test | 1.Test Chamber:50ºC±1ºC | ||
| 2.Saturation Barrel:63ºC±1ºC | |||
| Test standard | CNS,JIS,ASTM | ||
| Spray Mode | |||
| Tapered disperser | Adjustable Spray volume, and make spray even | ||
| nozzle | Precision Glass nozzle | ||
| Defogging Mode | Air enforcing and drain out | ||
| Control System | |||
| Chamber Temperature, Saturation barrel |
Touch screen controller; temperature resolution 0.1ºC; from 0-99.9ºC;PID auto tuning | ||
| Heating Slot Safe Temperature | 0~99ºC | ||
| First grade Pressure Structure Adjustment |
1.1st grade pressure regulating valve, pressure range 2-2,5kg/cm² |
||
| 2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable; spraying pressure adjust to 1.0Kg/cm² | |||
| 3.pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm² | |||
