Product Details:
Payment & Shipping Terms:
|
Range: | 0~2000µm/0~80mil | Resolution: | 0.1µm/1µm |
---|---|---|---|
Accuracy: | ±1~3%n Or ±2.5µm | Min.Measuring Area: | 6mm |
Data Memory: | 99 Groups | Operating Conditions: | Temperature:0~40ºC /Humidity:10~90%RH |
Highlight: | non destructive testing machine,non destructive testing instruments |

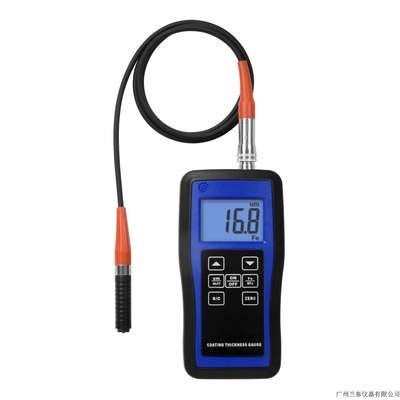

Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Landtek Instruments provide OEM/ODM services, specifically for customers to order unique instrument products, so that the product in the shape, color, function, distinguish from the same type of other products. This product difference performance, effectively improve product market competitiveness and achieve win-win situation.
* Optional data memory. Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Principle
Principles | Applications | Examples |
F Type Magnetic Induction (Iron Base) |
Measure the thickness of non-magnetic materials on magnetic materials | Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
NF Type Eddy Current (Aluminium Base) |
Measure the thickness of non-conductive coatings on non-magnetic metals | Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Specifications
Principle | F Magnetic Induction & NF Type Eddy Current |
Range | 0~2000µm/0~80mil |
Resolution | 0.1µm/1µm |
Accuracy | ±1~3%n or ±2.5µm |
Min.Radius Workpiece | F Type:convex 1.5mm/concave 25mm |
NF Type:convex 3mm/concave 50mm | |
Min.Measuring Area | 6mm |
Min.Sample Thickness | 0.3mm |
Metric/Imperial | √ |
Functions | Battery Indicator & Automatic Power Off |
Data Memory | 99 Groups |
Operating Conditions | Temperature:0~40ºC |
Humidity:10~90%RH | |
Power Supply | 4x1.5V AAA (UM-4)Battery |
Dimensions | 140x72x34mm |
Weight | 180g(Not Including Batteries) |
Standard Accessories | CM-1210A | CM-1210B |
Main Unit | √ | √ |
Probe (F & NF Type) | √ | √ |
Calibration Base (F) | √ | √ |
Calibration Base (NF) | √ | √ |
Calibration Foils | 1 set, 4 pieces | |
Carrying Case | B04 | |
Operation Manual | √ | |
Optional Accessories | RS-232C Data Cable with Software | |
Bluetooth Data Adapter with Software |
