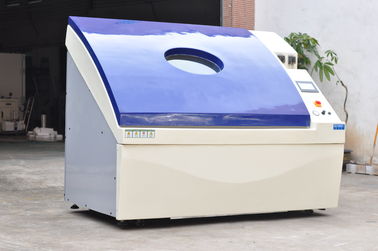

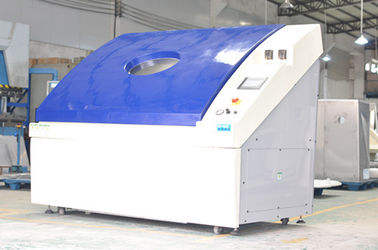

Composite Salt Mist Spray Corrosion Testing Equipment QST-1000-CCT For Nss Acss Test

Composite Salt Mist Spray Cyclic Corrosion Test Chamber For Nss Acss Test

Product introduction:

Cyclic corrosion testing simulates the closet actual natural environment,such as salt spray  drying, humidity and temperature alternating. The testing is strict than natural environment and can be programmed or tested individually.There is national testing standard for salt spray test,with acetic add salt spray corrosion test, Copper-accelerated acetic acid-salt spray test,and Cyclic corrosion test.QST-1512-CCT apply glass fiber reinforced plastic and touch screen auto running,it can run all the environment test in one chamber,conform relevant international standards.

It is widely used to test corrosion resistance of automotive,paint,surface coating,chemical,aerospace, electronic,car industry,offshore and defense industries.


Features:

1. Comprehensive anti-corrosion structure, high performance reinforced layers of glass fiber polyester resin enclosure, various auxiliary parts facilities for heat resistance corrosion resistant materials, same in strengthening steel skeleton of chemicals and good tolerance to high temperature corrosion, are tested in the chemical corrosion reactions will not occur.

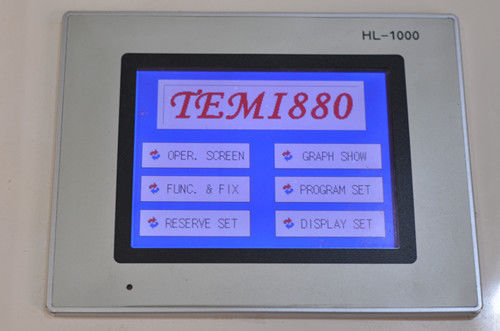

2. Using LCD touch screen programmable controller ,can display test data completely and translate in English or Chinese.

3. Spray,drying,humidity and low temperature cycle can be controlled completely.

4. Precision glass nozzle makes sure fog diffuses well-distributed and accurate collection rate in the chamber.

5. The mobile external salt solution tank, the flowmeter accurately monitors the solution flow.

6. After the test, the samples in the test chamber can be observed clearly with the automatic defogging device. .

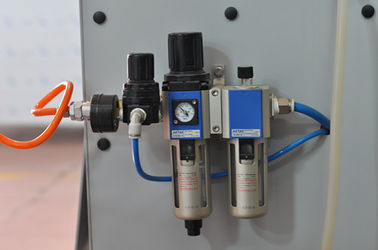

7. Air conditioning and pressure gage can monitor air pressure for accurate spraying distribution.

8. The salt spray tester has multiple system protection ,safe and reliable ,all electrical appliances are equipped with circuit breakers,all industrial heaters have electronic and mechanical overheating protection devices.

9. Chamber cover is turned on to support the pneumatic spring and can be turned on and off, with adjustable foot wheel and base for easy movement.

Standard:
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11.GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test


Technical Specifcation:
