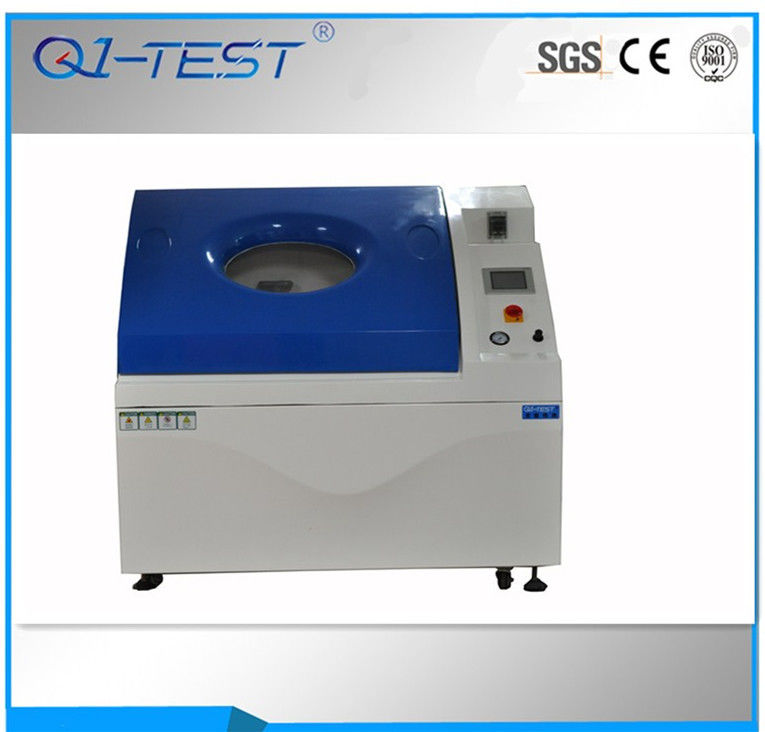

Cyclic Corrosion Chamber Salt Spray , Drying , Humidity And Temperature Alternating

salt spray, drying, humidity and temperature alternating
cyclic corrosion testing Chamber

Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.

There is national testing standard for salt spray test, with acetic acid salt spray corrosion test, Copper-accelerated acetic acid-salt spray test, and Cyclic corrosion test. CCT apply glass fiber reinforced plastics and touch screen auto running, it can run all the environmental test in one chamber, conform relevant international standards.

It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.

Technical Specification:

Parameter control operating modes:

salt spray mode:

room temperature range---+55℃

Adjusted salt fog sedimentation

Condensation humidity mode:

Room temperature range---+50℃

humidity range saturation humidity--95%~100%RH

Drying mode:

room temperature range---+70℃

Design advantages:

1.Humanization design with low front and high height,favorable for taking and placing the sample

2.One-click switch to control pneumatic doors,sealing strip dry seal

3.Integral injection molding,seamless trackless

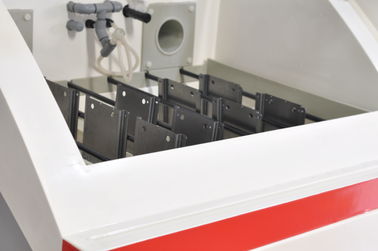

4.Two-layer sample placement design and inverted trapezoid inner box design

5.Hot stable, high performance salt spray nozzle

6.Precision salt fog collection device

7.Three high quality heating systems

8.Humanized operation interface(HMI)

9.Control and Display

10.Automatic air purging device interlocks with the top cover

11.Temperature and humidity Sensor and display

12.Simple and practical program system

13.Multiple safety protection system

14.Temperature and humidity chart display

Standards for:

ASTM-B117,B287,B-380,JISD-0201,H-8610,H8502,Z-2371,K-5400,DIN50021-75,ISO3768,3769/3770,GJB150,CNS3627,3885,4159,7669/8866,GB/T2423.17,GB/T10125-1997

Product features:

1. Comprehensive anticorrosion structure,High-performance reinforced multi-layer glass fiber polyester resin box body,various auxiliary accessories are also made of temperature resistant and corrosion resistant materials, with reinforced steel skeleton inside.Good resistance to chemicals and high temperature corrosion, no electrochemical corrosion reaction occurs with the test piece.

2. Programmable control with touch screen, complete the display test data,can be switched between Chinese and English.

3.spray, dry,moist heat,low temperature period completely controllable regulation.

4.Special precision nozzles can generate fog smoothly,ensure the salt spray is distributed evenly and the collection rate in the tank is accurate.

5.Mobile external salt solution water tank,flow meter precise salt control salt solution flow.

6.box cover is open for pneumatic spring support,switch optionally,Equipped with adjustable caster and base,free and relaxed .

7.After the test, there is an automatic defogging device,test product can be observed clearly.

8.Salt spray tester has multiple system protection, safe and reliable,all electrical appliances are equipped with circuit breakers,all industrial heaters have electronic and mechanical over-heating protection.

9.Air conditioning devices and pressure gauges can monitor air pressure,this is also required to meet the requirements of accurate spray distribution.
