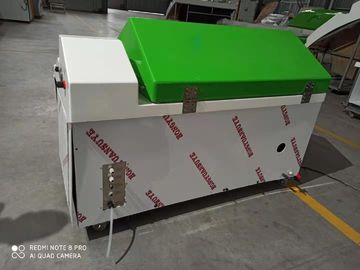

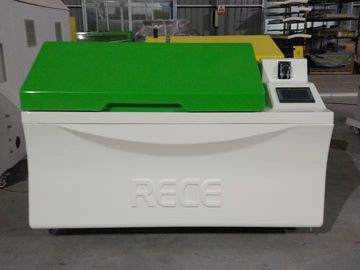

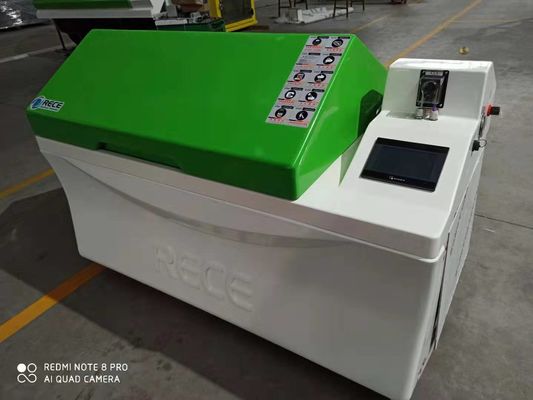

Heat insulation design, energy-saving box, anti deformation CCT Cycle Corrosion Test Chamber

Heat insulation design, energy-saving box, anti deformation CCT Cycle Corrosion Test Chamber

Operating Control Modes:

Salt spray mode:

Room temperature range---+55℃

Adjusted salt fog sedimentation---0.5ml-3.0ml/h/80cm2

Condensation humidity mode:

Room temperature range---+50℃

Humidity range saturation humidity---95%~100%RH

Drying mode:

Room temperature range---+70℃

Humidity control mode: humidity range see figure below

Design Advantages:

1.Humanization design with low front and high back,favorable for taking and placing the sample.

2.One-click switch to control pneumatic doors,sealing strip dry seal.

3.Integral injection molding,seamless trackless.

4.Two-layer sample placement design and inverted trapezoid inner box design.

5.Heat stability, high performance salt spray nozzle.

6.Precision salt fog collection device.

7.Three high quality heating systems.

8.Humanized operation interface(HMI).

9.Control and Display.

10.Automatic air purging device interlocks with the top cover.

11.Temperature and humidity Sensor and display.

12.Simple and practical program system.

13.Multiple safety protection system.

14.Temperature and humidity chart display.

Brief Introduction:

CCT composite salt spray chamber is the closest to the actual natural condition in accelerated corrosion test,simulate and test the damage degree of the products in a certain time range according to the conditions often encountered in the natural environment,combined test is carried out in this test chamber under several times harsh natural environment, such as salt spray, air drying, standard atmospheric pressure constant temperature and humidity, low temperature and other multiple environments can be combined for real test and carried out in any order.

This salt spray test has been made into relevant national standards in China, and detailed regulations have been made.It has been developed from simple neutral salt spray test in the early stage into: acetate spray test, copper salt accelerated acetate spray test and alternating salt spray test chamber.This chamber adopts the touch screen full-automatic mode,can accurately simulate the environmental test conditions required by today's manufacturing industry,which is a rare high cost performance test chamber in the domestic market.

Application:

This chamber is widely used in enterprises and institutions such as aerospace, automobile, motorcycle, armament, electronic and electrical engineering, chemical coating, quality inspection and measurement, ship and railway, universities and scientific research. It is one of the necessary and important equipment for environmental adaptability and reliability test of metal protective layer, various parts, electronic components and industrial products.

Testing Standards:

ASTM-B117,B287,B-380,JISD-0201,H-8610,H8502,Z-2371,K-5400,DIN50021-75,ISO3768,3769/3770,GJB150,CNS3627,3885,4159,7669/8866,GB/T2423.17,GB/T10125-1997

Features:

1. Comprehensive anti-corrosion structure,High-performance reinforced multi-layer glass fiber polyester resin box body,various auxiliary accessories are also made of temperature resistant and corrosion resistant materials, with reinforced steel skeleton inside.Good resistance to chemicals and high temperature corrosion, no electrochemical corrosion reaction occurs with the test piece.

2. Programmable control with touch screen, complete the display test data,can be switched between Chinese and English.

• Spray, dry,moist heat,low temperature period completely controllable regulation.
• Special precision nozzles can generate fog smoothly,ensure the salt spray is distributed evenly and the collection rate in the tank is accurate.
• Mobile external salt solution water tank,flow meter precise salt control salt solution flow.
• Box cover is open for pneumatic spring support,switch optionally,equipped with adjustable caster and base,free and relaxed .
• After the test, there is an automatic defogging device,test product can be observed clearly.
• Salt spray tester has multiple system protection, safe and reliable,all electrical appliances are equipped with circuit breakers,all industrial heaters have electronic and mechanical over-heating protection.
• Air conditioning devices and pressure gauges can monitor air pressure,this is also required to meet the requirements of accurate spray distribution.


Technical Specification:
