Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester

China Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester supplier

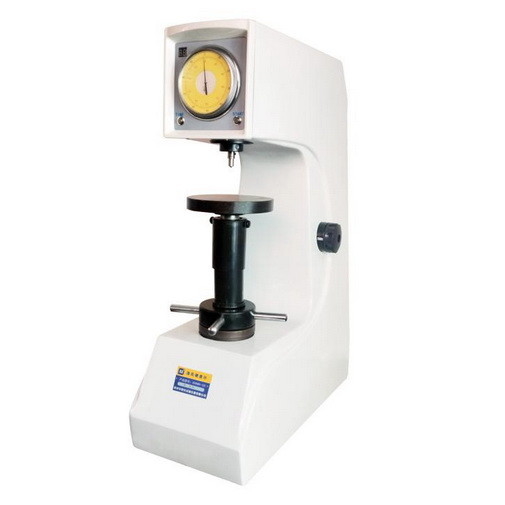

Large Image :  Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: 2XHRD-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Scales: 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW Loading: Motorized Loading And Unloading
Throat Depth: 160mm Vertical Space: 200mm
Test Force: 60, 100, 150kgf Test Standard: American ASTM E18 Standard



Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester



Model: 2XHRD-150



Product Features:

●iqualitrol 2XHRD-150 motorized loading plastic Rockwell hardness tester used to test hardness of non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals in laboratories and workshops. the loading, dwell and unloading of the test force is controlled by the motor, and the dwell time can be set;



● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;



● Read the hardness values directly from the dial with resolution 0.5HR;

● Adopt the Friction-Free spindle, high test accuracy;



● The loading, dwell and unloading of the test force is controlled by motor;

● Accuracy conform GB/T230.2, ISO6508-2 and American ASTM E18 standards.



Main Parameters:

Model 2XHRD-150
Range of Measurement 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW
Test Force 588.4,980.7,1471N(60,100,150kgf)
Maximum Height of Specimen 200mm
Throat depth 160mm
Hardness Resolution 0.5HR
Power Supply AC220V/50Hz
Dimension 510*290*730mm
Weight 75kg
