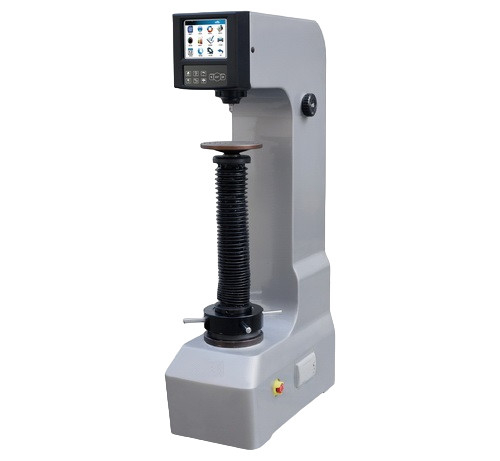

Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Height 400mm

Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Specimen Height 400mm

Download Technical Data: iqualitrol Rockwell Tester SHR-150H

Brief Introduction:

The iqualitrol Rockwell SHR-150H uses the method of measuring the indentation depth, and the hardness value is read directly through the indication. Therefore, the operation is simple and convenient, easy to master, and has high work efficiency.

It is suitable for the inspection of batches of parts; the Rockwell hardness test uses a diamond indenter and ball indenter can measure both hard and soft samples and has a wide range of uses. Therefore, the Rockwell hardness test is widely used in production and has become the main testing method to inspect product quality and determine reasonable processing technology.

Rockwell hardness tester is a test instrument commonly used by manufacturing enterprises, large and medium-sized universities, and scientific research institutions for hardness testing, teaching and scientific research.

Product Advantages:

1. Automatic loading and unloading, automatic calculation of 15 kinds of Rockwell hardness scales such as HRA;

2. Integrated data processing and display dual-core 32-bit ARM processor;

3. The equipment integrates dual control of touch screen and touch buttons to adapt to complex working conditions: the touch screen facilitates users to set parameters, the touch screen uses a large color LCD display, and the human-computer interaction interface is simple and friendly; the touch buttons abandon the safety hazards caused by traditional mechanical buttons. and application limitations;

4. The motor controls the loading, dwell and unloading of the test force, eliminating the human error of the manual Rockwell hardness tester.

5. The system integrates three hardness conversion standards, ASTM_E140-12be, ISO_18265-2013, and GB/T 1172, and automatically performs hardness conversion, eliminating the need to waste time querying cumbersome hardness comparison tables.

6. The self-developed IQUALITROL system has built-in single-point and multi-point statistical modes, providing 200 sets of single-point data storage and 100 sets of multi-point data storage. And the multi-point mode provides hardness distribution curve data analysis function, automatically calculating the maximum value, minimum value, and average value, which is convenient for users to analyze test data.

7. Built-in printer for data printing;

8. Pre-test force loading automatic locking system. When the pre-test force reaches 98.07N (10kgf), the system automatically locks the lifting screw to prevent overshoot of the pre-load test force.

Technical Specifications:
