| Test Space: | H 400 * D 165mm | Display: | Touch Screen Display |
|---|---|---|---|
| Data Output: | Thermal Printer, USB Port | Advantages: | Upper And Lower Limit Settings, Arc Correction Compensation |
| Loading Method: | Dead Weight Loading Mechanism | Execute Standard: | ISO 6508,ASTM E18,JIS Z2245 |

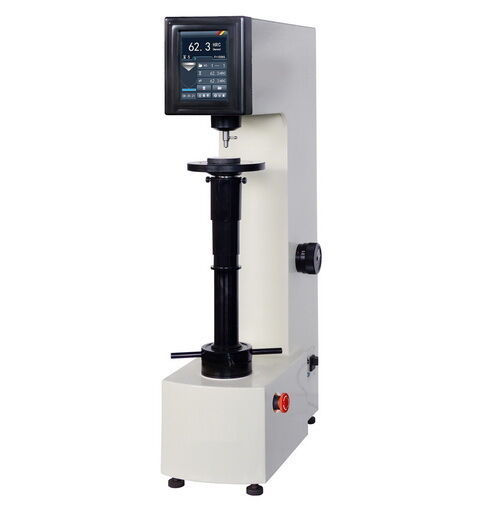

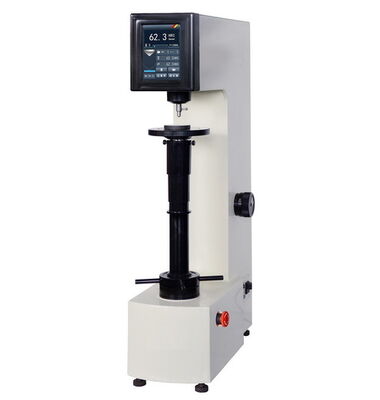

Touch Screen HRS-150L Digital Rockwell Hardness Tester with Vertical 400mm
Brief Introduction:
The iqualitrol HRS-150L Digital Rockwell hardness tester adopts the high resolution color touch screen, it can show and set the present scale, test force, test indenter, dwell time and hardness conversion.
iqualitrol HRS-150L adopts the dead weight loading mechanism. During operation, do the manual pre-loading until it beeps, the instrument will automatically load, dwell, unload, and display the hardness value.
The operation is convenient and the display is intuitive. This is the heightening type at max vertical space 400mm, which is more convenient for measuring the large samples.
Main Features:
After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which has stable structure and wear resistance.
The weights and lever are manufactured and calibrated by classic techniques, with high accuracy and can be fine tuned through mechanical structures.
5.6 inch HD touch screen display and operation, dynamic image display of operation process and beeping prompts.
It supports for Rockwell hardness scales, after selecting the scale it prompts the selection of corresponding indenter and test force, and the test force is switched by rotating the knob.
It supports the conversion of various hardness scales in real time.
It supports upper and lower limit settings and has the function of arc correction compensation.
Real time saving of hardness test results, automatic calculation of maximum, minimum, mean, standard deviation, repeatability, etc., with multiple folder selection, optional deletion and printing output.
Built in thermal printer with fast printing speed, and equipped with USB interface for users to output the data.
Application Range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification:
| Model | HRS-150L |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.5875mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | 5.6 inch Touch Screen Display |
| Test Scale | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Data Storage | 6 folders, each 1000 sets data |
| Data Output | Built-in Printer,USB Interface |
| Hardness Resolution | 0.1HR |
| Dwell Time | 0~99s |
| Max. Sample Height | 400mm |
| Throat Depth | 165mm |
| Power Supply | AC220V,50Hz |
| Execute Standard | GB/T 230,ISO 6508,ASTM E18,JIS Z2245 |
| Dimension | 500×200×880mm |
| Net Weight | 98kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Accessory Box | 1 pc |
| Diamond Rockwell Indenter | 1 pc | Φ1.5875mm Ball Indenter | 1 pc |
| Φ150mm Flat Anvil | 1 pc | Φ74mm Flat Anvil | 1 pc |
| Φ40mm V-shaped Anvil | 1 pc | Hardness Block 60~70 HRC | 1 pc |
| Hardness Block 20~30 HRC | 1 pc | Hardness Block 80~100 HRBW | 1 pc |
| Weight A, B, C | 3 pcs | Level | 1 pc |
| Horizontal Regulating Screw | 4 pcs | Power Cable | 1 pc |
| Fuse 2A | 2 pcs | Inner Hexagon Spanner 3mm | 1 pc |
| Spanner 7mm | 1 pc | Anti-dust Cover | 1 pc |
| Usage Instruction Manual | 1 copy |
