Product Details:
Payment & Shipping Terms:
|
| Hardness: | Reading By Touch Screen | Resolution: | 0.1HR |
|---|---|---|---|
| Compensation: | Range 95% - 105% | Printing: | Built-in Printer |
| Max Height: | Of Testing Sample 170mm | Horizontal: | Max 165mm |
| Highlight: | digital hardness tester,portable metal hardness tester |
||

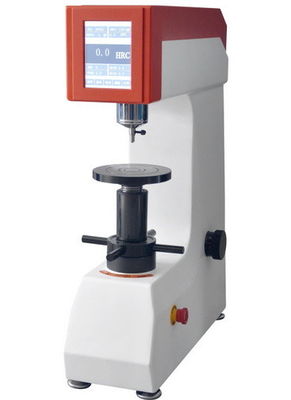

Touch Screen Digital Rockwell Hardness Testing Machine Support Data Compensation
Model: HRTS-150

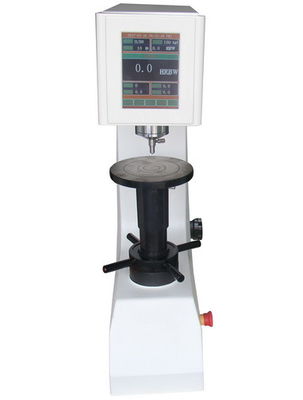

HRTS-150 Color Touch Screen Digital Rockwell Hardness Tester is a new generation of multi-functional, high-precision, stable performance high-tech products of our company.
Its appearance is novel, and the shell adopts one-piece casting, high stability, and its touch screen interface menu.
The operation is simple, intuitive and convenient. The measuring device is controlled by a grating sensor and a computer. The hardness indication value is directly displayed on the LCD screen.
It is a mechanical and electrical integration hardness testing instrument. Various hardness parameters can be automatically converted to each other to identify the minimum thickness of the specimen. When testing the cylinder, corrections are automatically added.
Automated operation to eliminate human errors and reading errors! At the same time, the machine is also equipped with an emergency stop device that is safer to use!
Main functions and features:
1, directly through the 7-inch LCD touch screen display test hardness value;
2, through the built-in system, built-in hardness error, adjustment range: 95% -105%;
3. The shell is made by a special sandblasting process with a one-step casting process. The structure is stable without deformation and can work in a relatively harsh environment. The car has a high-grade paint and a strong anti-scratch ability. It is still bright as a new product for many years.
4, We have our own R & D design, production and processing capabilities, machine life to provide parts replacement and maintenance upgrades;
The main purpose and scope of application:
1.Casting and Forging Parts · Sample Testing and Acceptance Inspection;
2.Plane and cylindrical workpieces ·Steel, non-ferrous metals;
3.Automotive and Aerospace · Carbide, Ceramics, Stainless Steel;
4.Laboratory and workshop.
The main Technical Parameters:
| Initial test force | 10kgf(98.07N) Allowable error±2.0% |
| Total test force (N) | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rocker Ruler | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK HRL,HRM,HRP,HRR,HRS,HRV |
| Inspection standards | GB/T230.1 GB/T230.2 Chinese Standard JJG112 Inspection Rule |
| Accuracy | 0.1HR |
| Burden time | 1-60 seconds |
| Hardness readings | Touch the LCD |
| Maximum height of test piece | 170mm |
| Indenter - outside wall distance | 165mm |
| Dimensions | 550×220×730mm |
| power supply | 220V/50HZ |
| Net weight | 85Kg |
| Hardness test range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125 |
Packing List:
| NO. | Name (specification) | Quantity |
| 1 | Diamond Rock Head | 1 |
| 2 | Diameter 1.5875mm ball Head | 1 |
| 3 | Large, Medium and V Test Benches | 3 |
| Standard Rockwell hardness block | 3 | |
| 4 | HRA | 1 |
| 5 | HRC | 2 |
| 6 | fuse 2A | 2 |
| 7 | power cable | 1 |
| 8 | RS-232 Communication line | 1 |
| 9 | Weights A,B,C | 3 |
| 10 | Dust-proof plastic cover | 1 |
| 11 | Product certificate | 1 |
| 12 | Printer paper, printer manual | 1 |
| 13 | Product instruction manual | 1 |
