|Application:||Metallographic Laboratories Of Factories, Colleges And Universities||Power Supply:||Voltage: 220V Frequency: 50HZ, 370W|
|Water Cooling:||To Prevent Damage Due To Overheating Sample Microstructure||Shell:||High-end ABS, Novel Appearance|
|Rotate Speed:||Fixed Speed 450r/min||Disc Qty:||Double Disc Diameter 203mm|

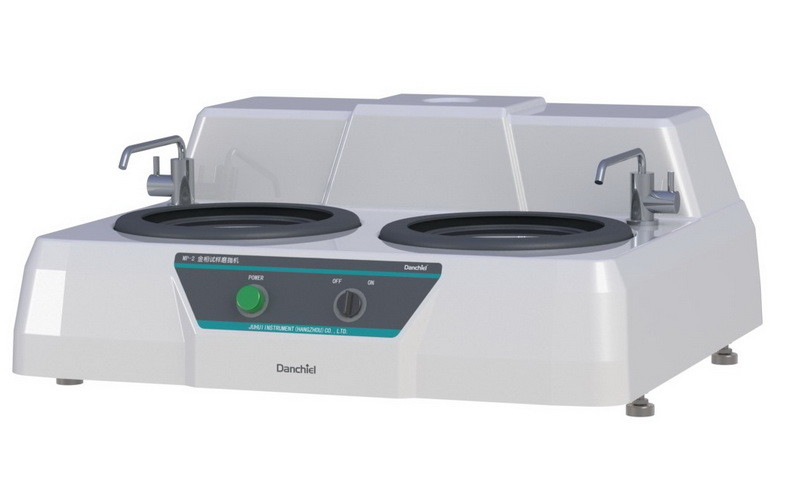

Double Disc Diameter 203mm Metallographic Sample Pre-grinding Machine
In the process of metallographic sample preparation, sample grinding is an essential process. The grinding of the sample is generally divided into two processes: coarse grinding and fine grinding.
The purpose of coarse grinding is to obtain a flat surface, which is generally done on a grinder, and there are still deep marks on the surface of the sample. The purpose of fine grinding is to eliminate these grinding marks to obtain a flat and smooth grinding surface, which is ready for the next step of polishing.
The iqualitrol M-2 metallographic sample pre-grinding machine can be used for fine grinding of metallographic samples. The shell adopts integral blister, novel appearance, stable rotation, low noise, convenient operation, high work efficiency, etc., and comes with cooling.
The device can cool the sample during grinding to prevent the metallographic structure from being damaged due to overheating of the sample. It is suitable for metallographic laboratories of factories, colleges and universities, and scientific research units. It is an excellent equipment for pre-grinding metallographic samples.
Main functions and features:
1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. The faucet adopts all-copper chromium plating process, which has good corrosion resistance
3. The double-disc design doubles the sample preparation efficiency instantly and is more efficient
|Diameter of Grinding Disc||Standard φ203mm (other specifications customized)|
|Rotating Speed of Grinding Disc||450r/min|
|power supply||Voltage: 220V Frequency: 50HZ|
