Product Details:
Payment & Shipping Terms:
|
| Model: | OPT-380 | Application: | Ceramics, Glass, PCB Board, Optical Materials |
|---|---|---|---|
| Speed: | Stepless Speed 10-200rpm | Motor: | Adopts Angular Contact Bearing Instead Of Ball Bearing |
| Time Control: | Working Time (between 0-999H) With Timing Function | Controller: | 2.4" Simple LCD Screen |

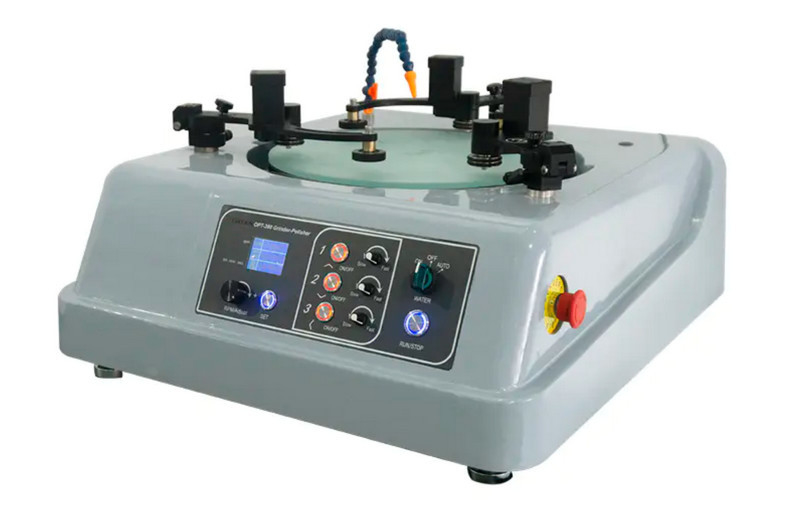

Comprehensive Performance OPT-380 Automatic Precision Grinder and Polisher
Features:
1. The grinding disc can be convenient to replace as the swing arm can be quickly disassembled and assembled;
2. The motor adopts the stepless speed control method, and the speed in real time can display on the digital screen;
3. Even longer service life as the motor adopts angular contact bearing instead of ball bearing;
4. Can accurately control the working time (between 0-999H) with timing function;
5. Can running long-term in low-speed with a cooling system;
6. Convenient to operate on the 2.4" simple LCD screen.
Technical Parameters:
| OPT-380 | ||
| Working Wheel | Speed | 10-200rpm |
| Diameter | Φ381mm | |
| Station | Three station | |
| Grinding Capacity | Specimen Size | Dia < Φ155mm |
| Planeness | less-than 0.002mm per 20*20mm | |
| Electrica | Voltage/Frequency | 220V/50Hz |
| Rated Power | 800W | |
| Standby Power | 15W | |
| Timer | 0~999H59M59S | |
| Water Supply | Max. pressure | 0.6MPa |
| Dia. on inlet pipe | Φ8mm | |
| Dia. on outlet pipe | Φ32mm | |
| Operating Environment | Temperature | -20˚C - 60˚C |
| Humidity | 0-95%RH | |
| Dimension | W*D*H | 653*771*338mm |
| Weight | 150kg | |
