Alpha-108 Single Disc Grinder And Polisher With 8" Or 10" Disc Diameter

China Alpha-108 Single Disc Grinder And Polisher With 8" Or 10" Disc Diameter supplier

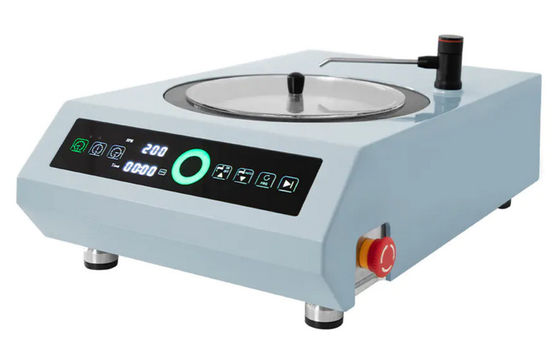

Large Image :  Alpha-108 Single Disc Grinder And Polisher With 8" Or 10" Disc Diameter

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: Alpha-108

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Alpha-108: Small In Size,compact In Structure And Easy To Operate Servo Motor: Servo Motor Helps Maintain High Torque Even At Low Speed
Touch Panel: Glass Touch Panel, Simple To Operate And Easy To Use Retractable Faucet: Retractable Faucet For Easy Cleaning And Washing
Shell: ABS Molded Shell, Small And Beautiful, High Strength Speed: 10-1000rpm, CW/CCW



Single disc grinder and polisher with 8" or 10"(203/254mm) disc diameter



Model: Alpha-108



Technical Data Download: iqualitrol Single disc grinder and polisher Alpha-108



Product Description:

The Alpha-108 is a single disc grinder and polisher with an 8"/10"(203/254mm) disc diameter. The machine is small in size,compact in structure and easy to operate. Adopting the popular touch panel, it is especially suitable for grinding and polishing of various specimens.



Features:

1. Servo motor helps maintain high torque even at low speed;

2. Glass touch panel, simple to operate and easy to use;

3. Fully sealed design in the working tray, no water will leak into the equipment even if there is water inside the tray;

4. Retractable faucet for easy cleaning and washing;

5. No tools are needed to disassemble the working plate, the disassembly is extremely convenient;

6. ABS molded shell, small and beautiful, high strength;


Technical parameter:

ModelAlpha-108
Working discDiameter8"/10"(203/254mm)
Speed10-1000rpm
DirectionCW/CCW
Torque10N.m
ElectronicVoltage/Frequency220V/50Hz (1Ph/N/PE)
Rated Power1500W
Rated Current8A
ControlPanelTempered glass,Touch Panel
Preset 3 SpeedYes
Timing/CountdownYes
Water SupplyMaximum water pressure<0.3MPa
lnlet connector
Outlet diameter
G 3/4 External thread
OD=Φ32mm(1-1/4 inch)
Circulating water tankOptional
NoiseMeasured at a distance of 1 meter<40dBA
EnvironmentTemperature-20˚C - 60˚C (-4°F -140°F)
Humidity0-95%RH
DimensionWxDxH380×657×270mm
Weight 20kg
