Alpha-208 Grinding Polishing Machine Individual Control Panel Double Wheels

China Alpha-208 Grinding Polishing Machine Individual Control Panel Double Wheels supplier

Large Image :  Alpha-208 Grinding Polishing Machine Individual Control Panel Double Wheels

Product Details:

Brand Name: iqualitrol
Model Number: Alpha-208

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Servo Motor: 750W Servo Motor To Maintain High And Constant Torque Output Even At Low Speed Touch Press: Glass Touch Press Panel, Easy To Use And Simple To Operate
Water Spout: Retractable Water Spout For Convenient Cleaning And Maintain Shell: ABS Housing, More Strength And No Rust
Speed: 10-1000rpm, Wheel Diameter 8"(203mm) Control Panel: Individual Control Panel And Double Wheels



Alpha-208 Double Wheels individual control panel
grinding polishing machine



Technical Data Download: iqualitrol Double disc grinder and polisher Alpha-208



Product Description:

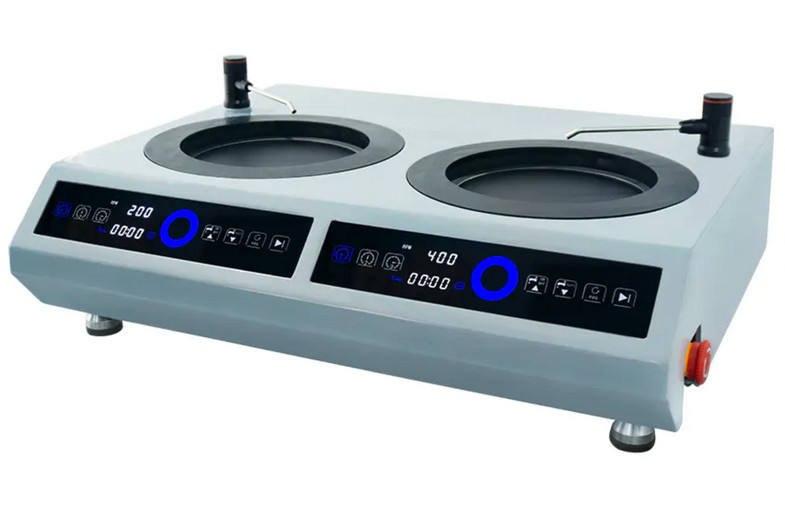

Alpha-208 is a newly designed grinder & polisher, that have individual control panel and double wheels of 8”(203mm) diameter. This machine is compact and easy to operate. Adopted the current popular touch key-press panel, and gesture-sensing function, stable in performance, especially suitable for grinding and polishing all kinds of samples.



Features:

1. 750W servo motor to maintain high and constant torque output even at low speed;

2. Glass touch press panel, easy to use and simple to operate;



3. Gesture-sensor function makes operate easily;

4. The spindle adopts fully sealed design, even if the water has no time to discharge from the drain hose, it will not leak into the equipment;



5. Retractable water spout for convenient cleaning and maintain;

6. The disc is easy to remove without any tools, ABS housing, more strength and no rust;


Technical Specifications:

Model Alpha-208
Wheel Diameter 8"(203mm)
Speed 10-1000rpm
Direction CW/CCW
Torque 10N.m
Electronic Voltage, Frequency 220V/50Hz (1Ph/N/PE)
Rated Power 1500W
Rated Current 8A
Control Panel Glass &Touch
Preset Speeds Yes
Timer Yes
Gesture -Sensor Yes
supply Max. water inlet <0.3MPa
lnlet type G 3/4 (Male)
Drain Hose OD=Φ32mm(1-1/4 inch)
Recirculating Tank Optional
Noisy Measure at 1 meter away <5OdBA
Operating
Environment
Temperature -20˚C - 60˚C (-4°F -140°F)
Humidity 0-95%RH
Dimension WxDxH 672×575×280mm
Weight 34kg
