Model: | XCut-100 | Speed: | Spindle Rotation Speed 2100rpm |
---|---|---|---|
Cut Capacity: | 100mm For Cylinder Sample | Cut Mode: | Automatic Cutting |
Work Table: | Dimension 290*300mm | Fixture: | Jig At Left And Right Side, Cutter At Center |

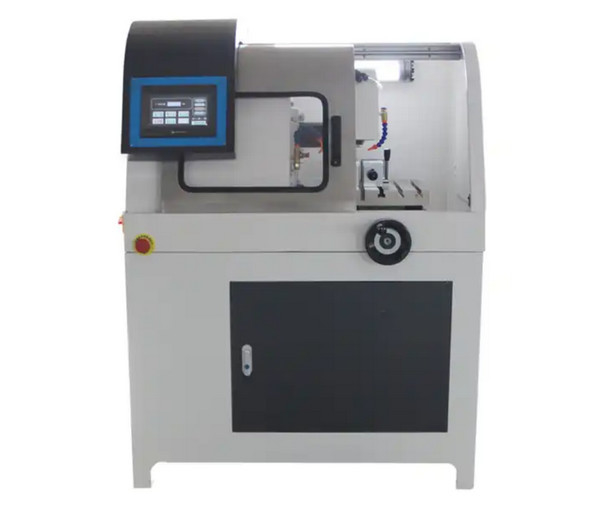

LCD touch screen High spindle rotation speed XCut-100 Automatic Metallographic cutting machine
Brief Introduction:
The cutting machine XCut-100 is suitable for cutting general metallography and lithofacies material specimens. This is to achieve a safe state cut the best, cutting machine with high-speed rotation sheets to enhance the abrasive cutting wheel to cut the sample.
To avoid the specimen overheating and burn material organization, the machine is equipped with a cooling system used to take away the heat generated during cutting.
The machine has easy operation. easy maintenance, and other advantages, the transmission powder are greater than similar domestic products, and this is the best choice for specimen cutting equipment.
Technical Specifications:
product brand | iqualitrol | Product parameters | |
product name | Automatic Metallographic Specimen Cutting Machine | Max. cutting diameter | 100mm |
Product color | White and Blue color | Specification of cutting wheel | 350*2.5*32mm |
Model | XCut-100 | Operation method | Automatic |
product material | Steel | Weight | 246KG |
Feature | 100% Eco-friendly/Soft/Lovely | Spindle Rotation speed | 2100r/min |
Quality Control | Advanced equipment and experienced QC team will check materials | Motor voltage | AC380V, 50Hz, 3ph, 3KW |
Delivery Term | 10-20 working days | Dimension | 1000*800*1400mm |
Dimension of working table | 290*300mm | Clamping Jig Specification | Jig at left and right side, cutter at center |
Cooling system | Water cooling 3 channels | Clamping tools | Disc jig, Rack jig, Universal jig can be customized |
1. The unit must be well grounded and the grounding device is reliable. 2. The inlet and outlet pipes are required to be unobstructed, and the joints must not leak. 3. After each operation, the equipment should be cleaned and maintained. 4. When the machine is found to have an abnormal sound, stop it immediately for inspection. |
|||
