Model: | MC-250 | Feature: | Rugged And Reliable With Low Noise |
---|---|---|---|
Cut-off Blade: | 250mm /10 Inch Diameter | Cut Mode: | Manually Chop Cutting |
Cooling System: | Water Cooling 60L Tank | View Window: | High-brightness Lighting System |

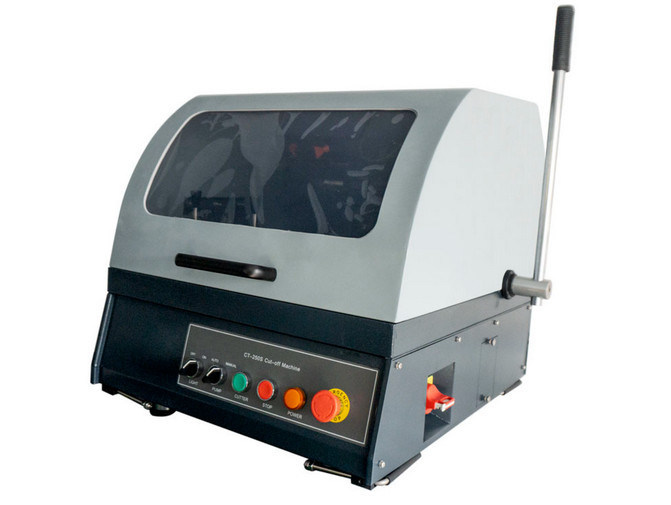

Manual Metallographic Cut-Off Machine with fixed
speed 2800rpm MC-250
Technical Data Download: iqualitrol Metallographic Manual Cutting Machine MC-250
Features:
1. Manually chop cutting, operation easily;
2. Omron electronic switch accessories, safe and reliable;
3. Huge observation window & high-brightness lighting system makes to observe the cutting process;
4. Super cooling system make sure the sample won’t burning during cutting;
5. The separate water tank and filter system can collect the swarf easily and Extend the life of the cut-off machine;
6. Rugged and reliable with low noise.
Application:
Ferrous metal, non-ferrous metal;
Castings, heat treatment samples, forgings;
Semiconductor, ceramics (with special cut-off wheels);
Other metal and non-metal materials.
Technical Specifications:
Model | MC-250 |
Max. Dia | Φ250 mm |
Cutting Capacity | Φ80 mm |
Feeding Mode | Manual |
Dimension of Table | 210*230 mm |
Power | 2.2 KW |
Power supply | 3x380V/50Hz Standard (220,440,480V/60Hz Option) |
Wheel Speed | 2800rpm |
Weight | 100 kg |
Dimension W*D*H | 664*684*621mm (Close), 664*898x829mm (Open) |
Volume of the tank | 60 L |
Dimension of the tank | 620x420x520mm |
