| Model: | AC-250 | Control Of XYZ: | Fully Automatic Control Of XYZ Axes |
|---|---|---|---|
| Worktable: | Extra-large Worktable 300*280mm | Cutting Capacity: | Φ85mm For Cylinder Samples |

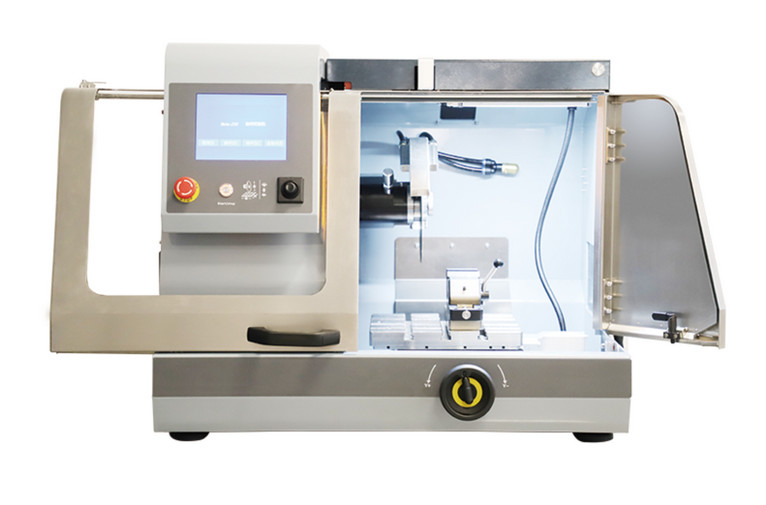

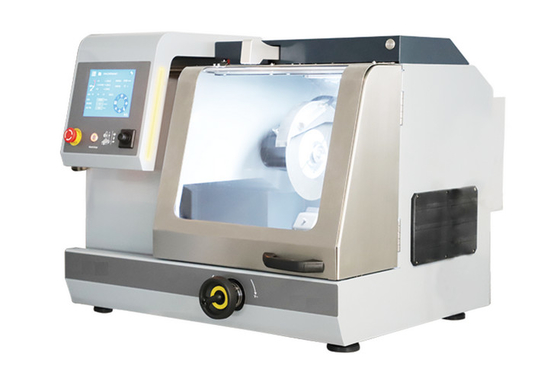

Touch Screen Controller Large Worktable Automatic Cut-off Machine AC-250 for Metallographic Sample Preparation
Brief Introduction:
AC-250 is a fully automatic cutting machine, suitable for cutting various metal materials, ceramics, quartz glass and petrographic samples, etc.
AC-250 can realize fully automatic cutting of multiple sections with different thicknesses in XYZ three axes.
Features:
1. Fully automatic control of XYZ axes;
2. Extra-large worktable and cutting chamber, the size of the worktable is 300*280mm;
3. Opening on both sides for extra-long specimens;
4. 8" Touch-Screen user interface;
5. Laser tool setting device.
Technical Specifications:
| Model | AC-250 | |
| Cutting wheel | Speed | 1000-3000rpm |
| Diameter | Φ254mm | |
| Hole-distance | Φ32mm | |
| Electricity | Input | 3x380V/50Hz+Neutral+Ground |
| Power | 3.8KW | |
| Cutting capacity | Maximum diameter | Φ85mm |
| Maximum square section | 85x250mm | |
| Intelligent cutting | Cutting mode | Vertical cutting / horizontal cutting |
| Feeding method | Constant speed cutting | |
| Travel | Feeding method | Y direction (front-back): 250mm; X direction (left-right): 100mm |
| Working table | Dimension | 280x300mm (W*D) |
| T-Slot | 12mm | |
| Dimensions | WxDxH | 930x900x720mm |
| Weight | 250kg | |
